FEATURES

• Ultra-compact reinforced polymer housing for durability and portability.
• Operates in the ISM 5 GHz band for superior interference resistance and stable, high-quality audio reception.
• True diversity reception technology enhances signal reliability.
• Supports STEREO and MIXED monitoring modes for flexible use.
• 4-band EQ for tailored tonal adjustments.
• Outstanding stereo separation (>100 dB) for immersive and detailed sound.
• 3.5 mm stereo earphone jack compatible with MIPRO professional monitoring earphones and most commercial models.

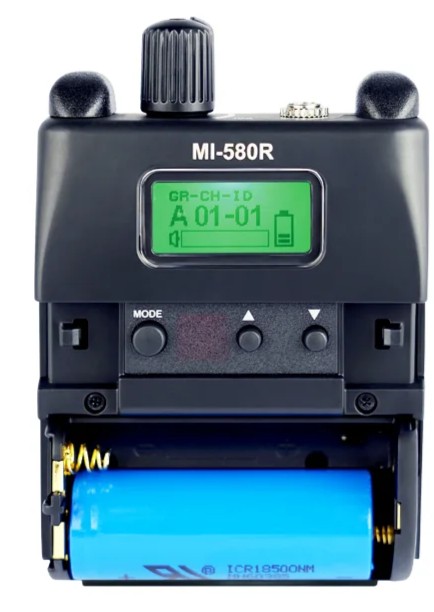

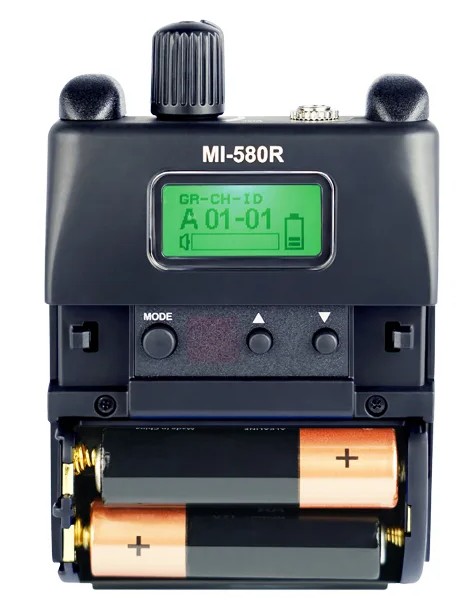

• Patented battery compartment accommodates AA or Li-ion batteries, with USB Type-C charging, safety protection, and no need for a dedicated charging dock.

SPECS

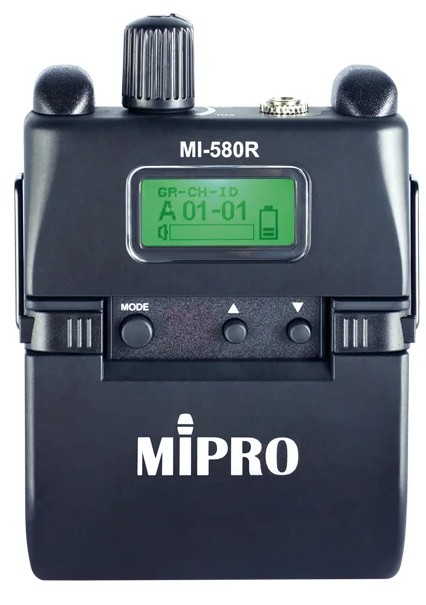

·      Model MI-580R

·      Name 5 GHz Digital Stereo Bodypack Receiver

·      Housing Reinforced plastic

·      Display Backlit graphic LCD

·      Control Interface ACT sync sensor, setting buttons and volume control

·      Frequency Range ISM 5.8 GHz

·      Receiving Mode True diversity

·      Audio Mode STEREO / MIXED

·      L/R Balance Adjustment Allows shifting the stereo output toward the left   right channel.

·      ENG Mode Yes, up to 16 sets (requires transmitter setup)

·      EQ FLAT / LO-CUT / LO-BOT / HI-BOT

·      Frequency Response 20 Hz – 23 kHz (stereo)

·      Dynamic Range ≥ 109 dBA (system)

·      Stereo Separation > 100 dB

·      THD < 0.1%@ 1 kHz

·      Latency Approx. 1.8 ms (group B)

·      Sensitivity 5 μV (S/N > 100 dB)

·      Output Power Left/Right × 100 mW@16 Ω

·      Earphone Jack 3.5 mm TRS

·      Power Supply One 18500 Li-ion battery or two AA alkaline

·      Battery Charging USB Type-C

·      Operating Time > 8 hours

·      Accessories E-9 / E-8S (optional)

·      Dimensions 63 × 95 × 25 mm (W × H × D)

·      Weight Approx. 160 g
