FCS12LAP / 1600-Watt Active Line Array / 1- 12” Speakers and 3 - 1.5” Horns

The FCS12LAP is compact, extremely high-output array module.

Advanced DSP algorithms deliver consistent front-to-rear SPL across all coverage areas.

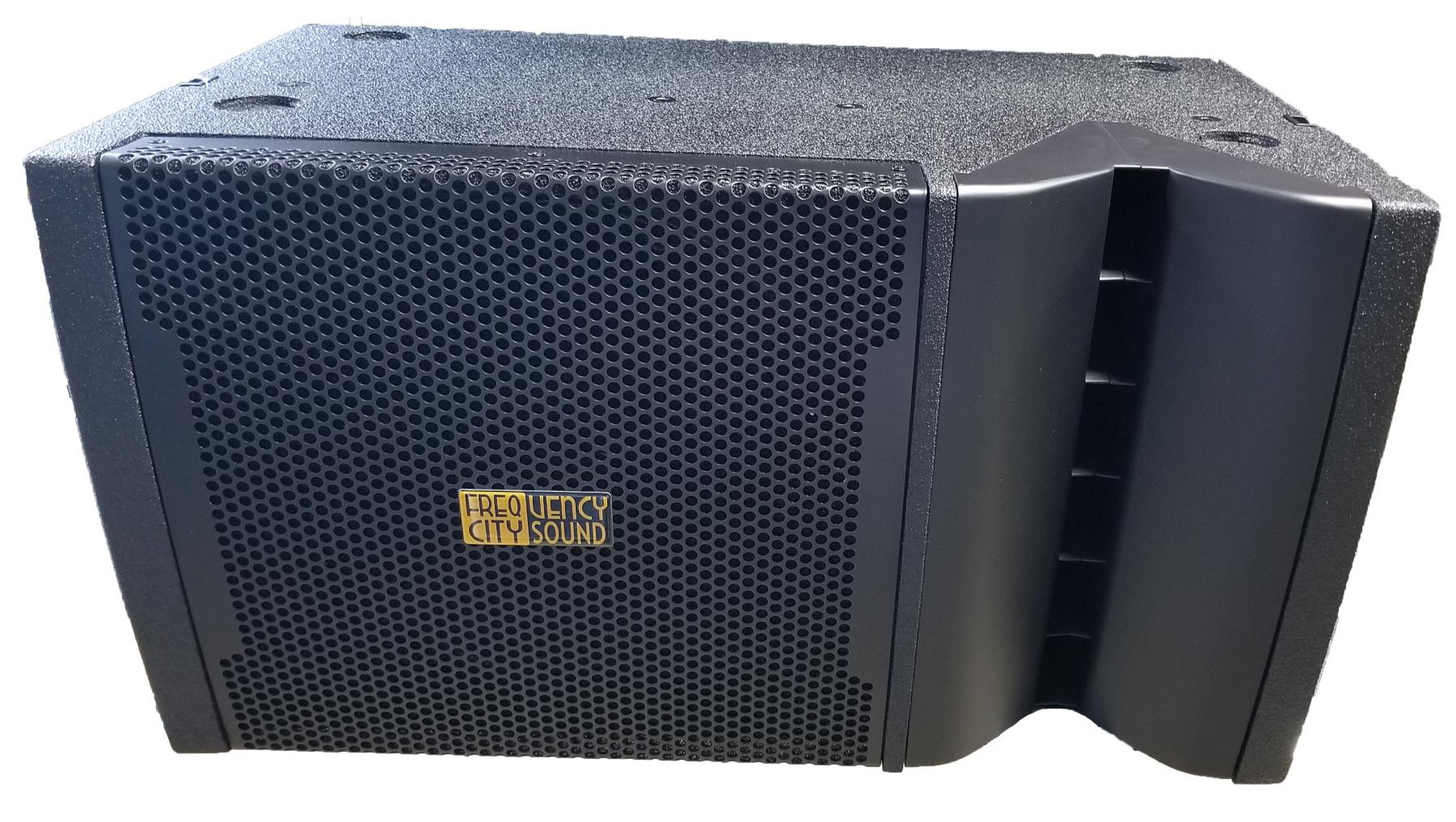

Frony View

FCS12LAP Shipped UPS /  $1450 Each Delivered

·         FCS12LAP

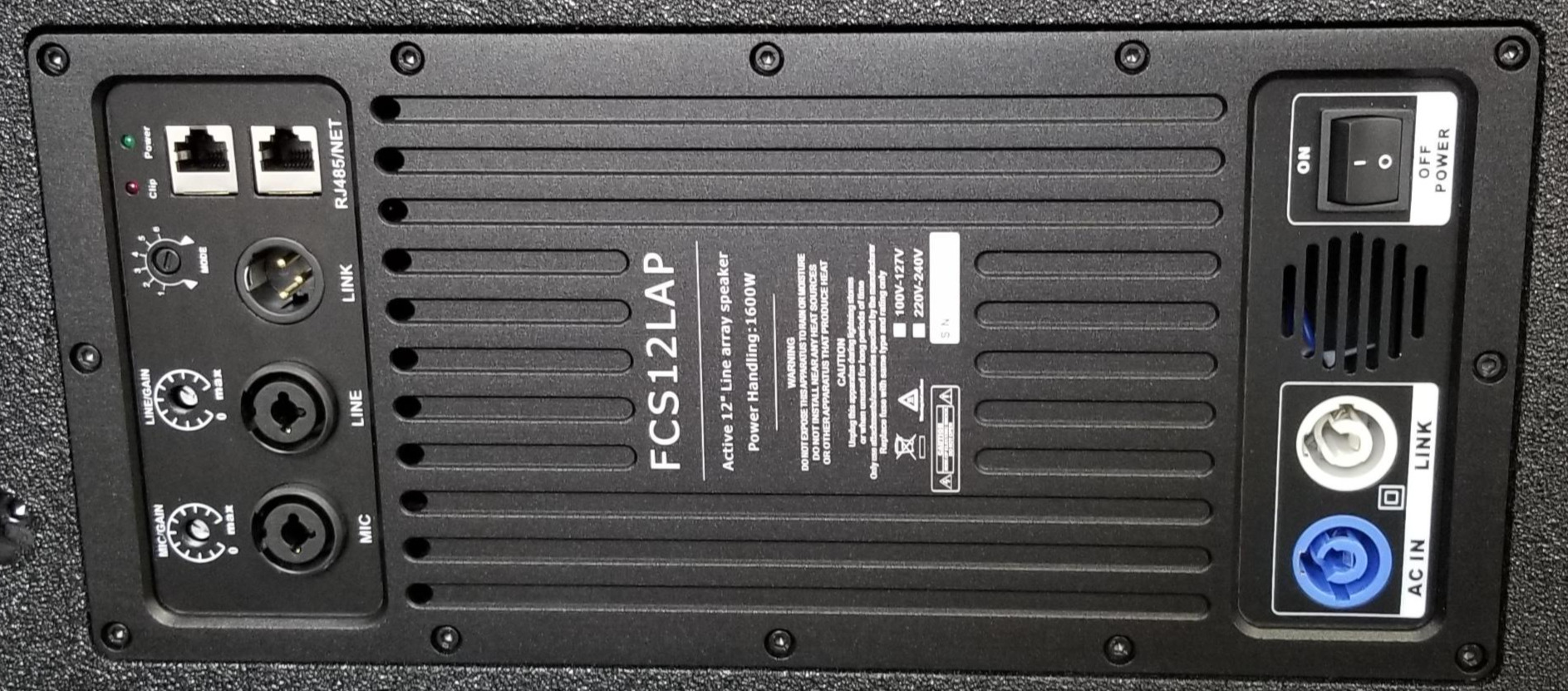

·         BUILT-IN 1600-WATT CLASS D AMPLIFIER MODULE.

·         6.3-AMP MAX AC DRAW.

·         FCS12LAP FEATURES 1- 12” SPEAKERS AND 3 - 1.5” HORN DRIVERS

·         CONSTANT CURVATURE WAVE GUIDE FOR IMPROVED ARRAY COHERENCE.

·         INTEGRAL RIGGING HARDWARE FOR SIMPLE CONNECTION OF MULTIPLE ENCLOSURES

·         OPTIONAL ARRAY FRAME AVAILABLE.

·         DUAL ANGLE POLE SOCKET FOR AIMING FLEXIBILITY.

·         FREQ RANGE 60 HZ – 20 KHZ

·         SENSITIVITY 98DB/1W@1M

·         MAX SPL 127DB

·         BIRCH PLYWOOD / BLACK URETHANE STYLE COATING

·         EACH BOX WEIGHS 45.5 POUNDS

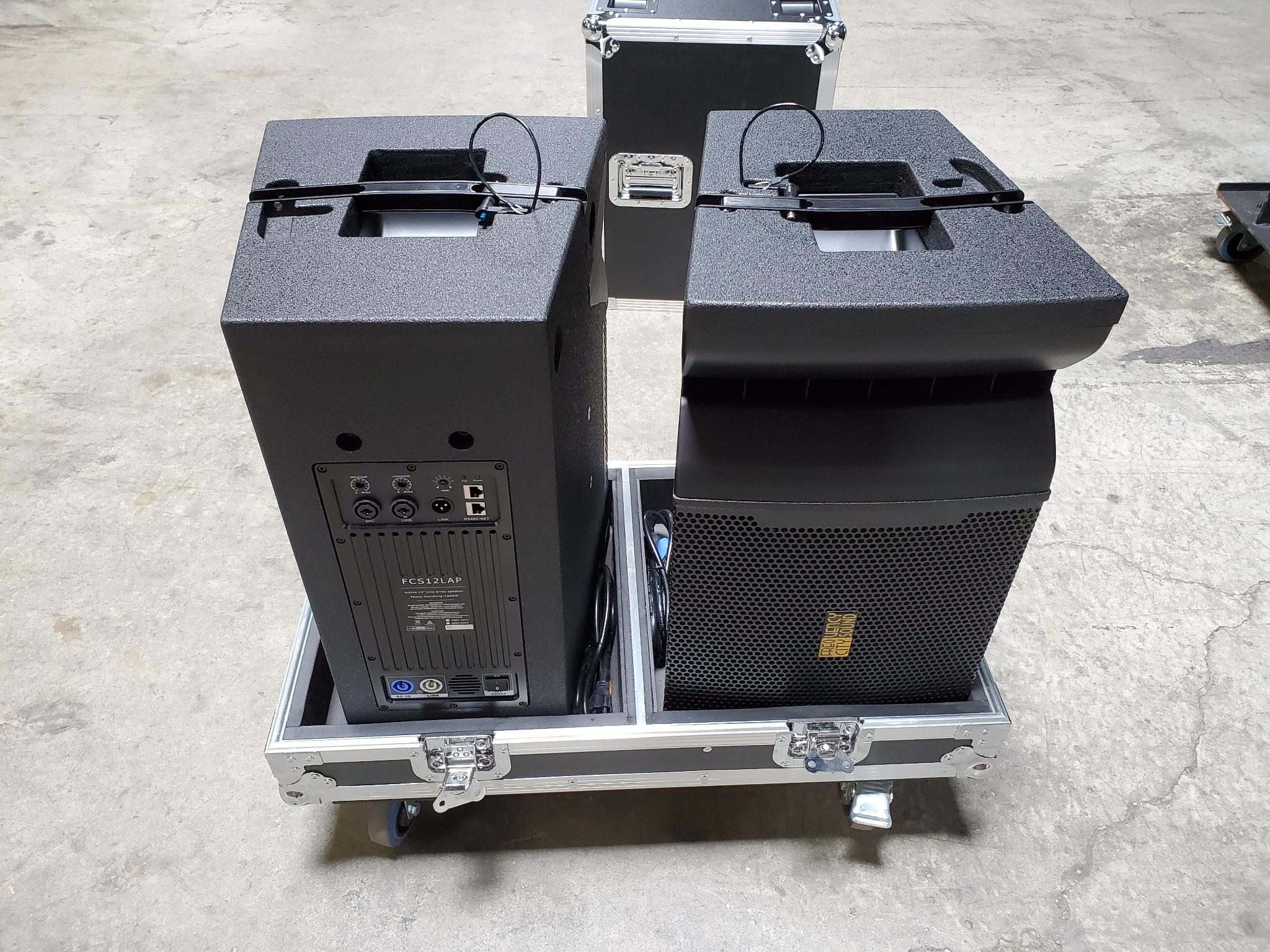

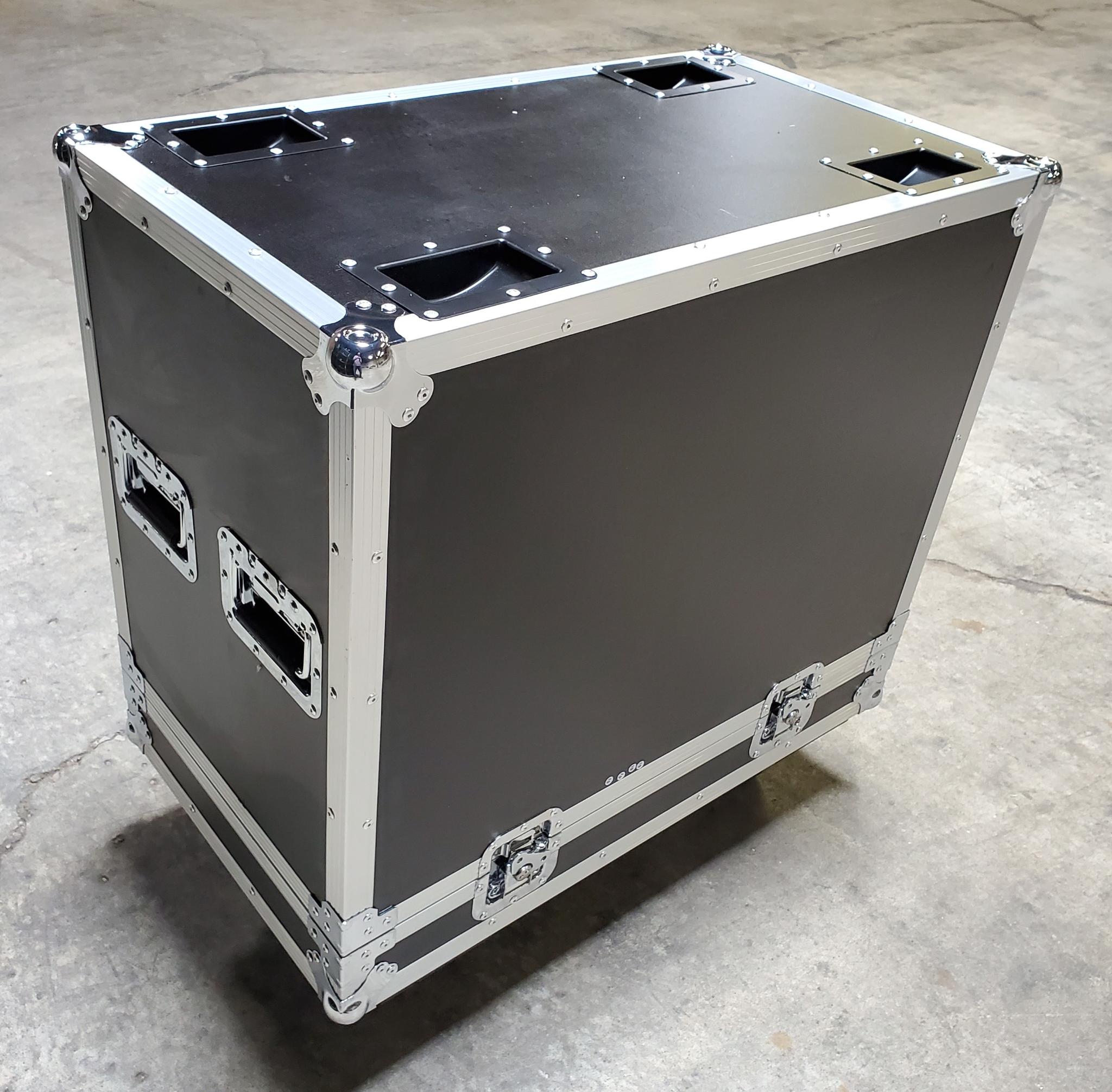

·         ROAD CASE WITH 2 SPEAKERS WEIGHS 155LBS.

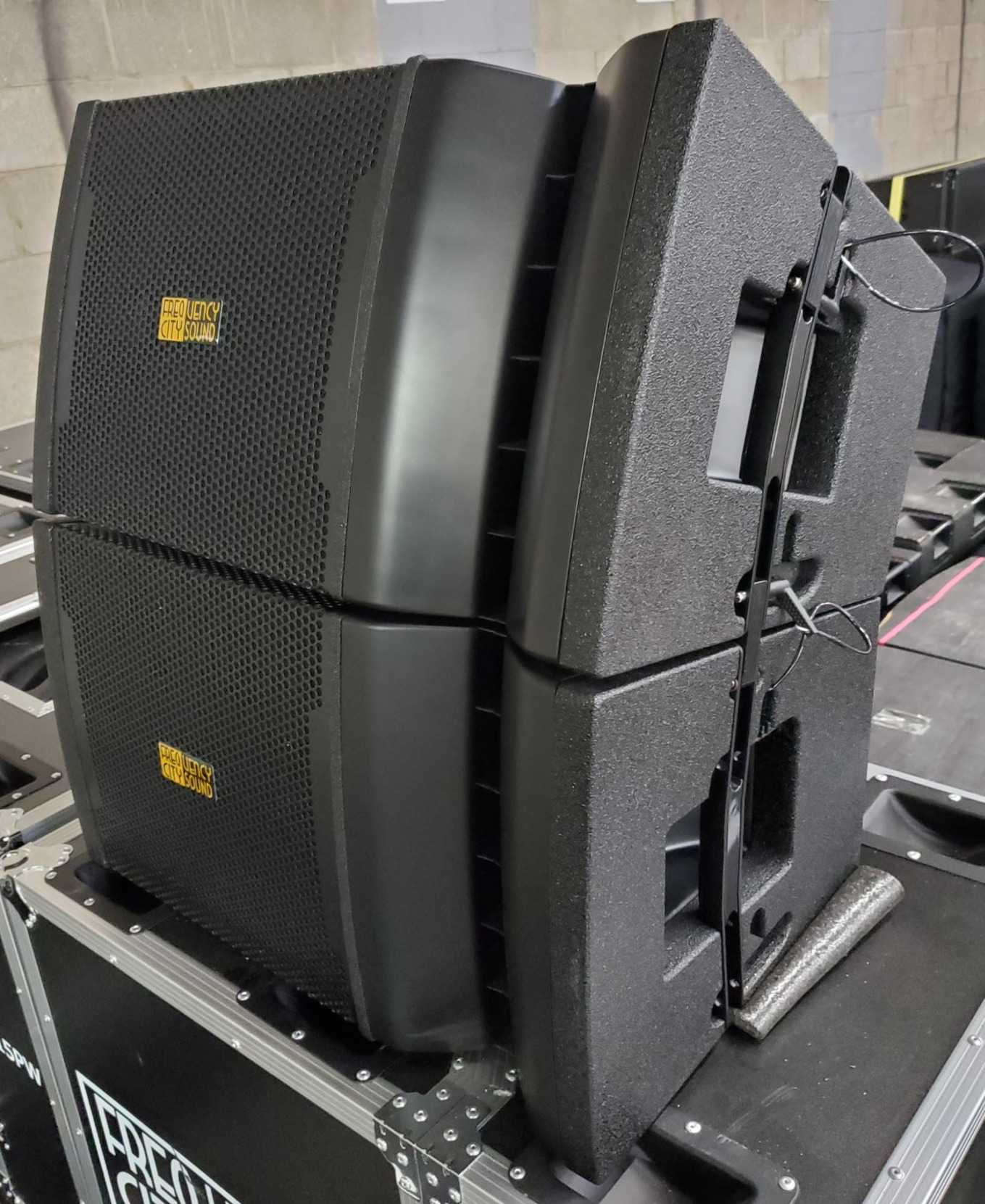

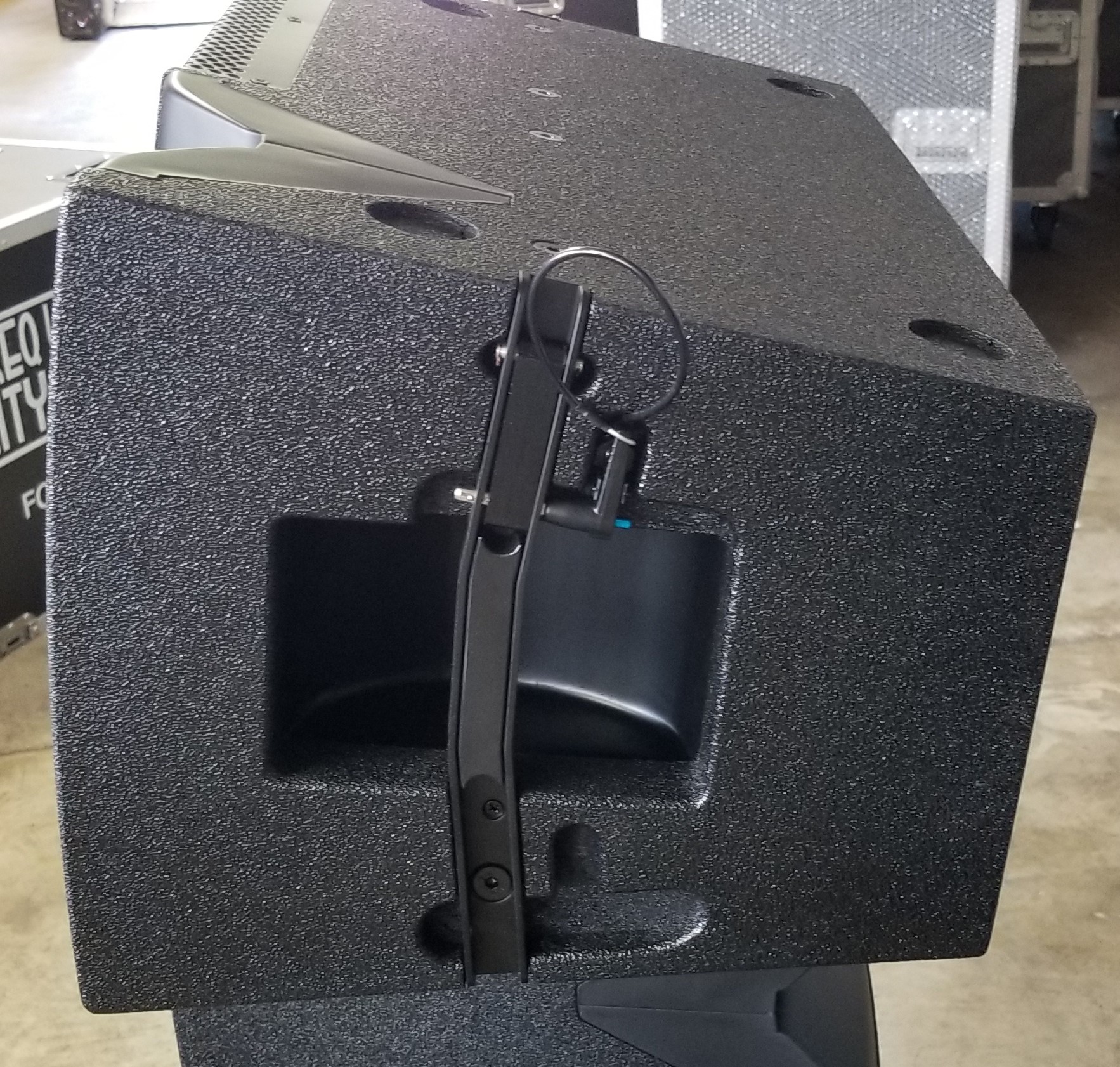

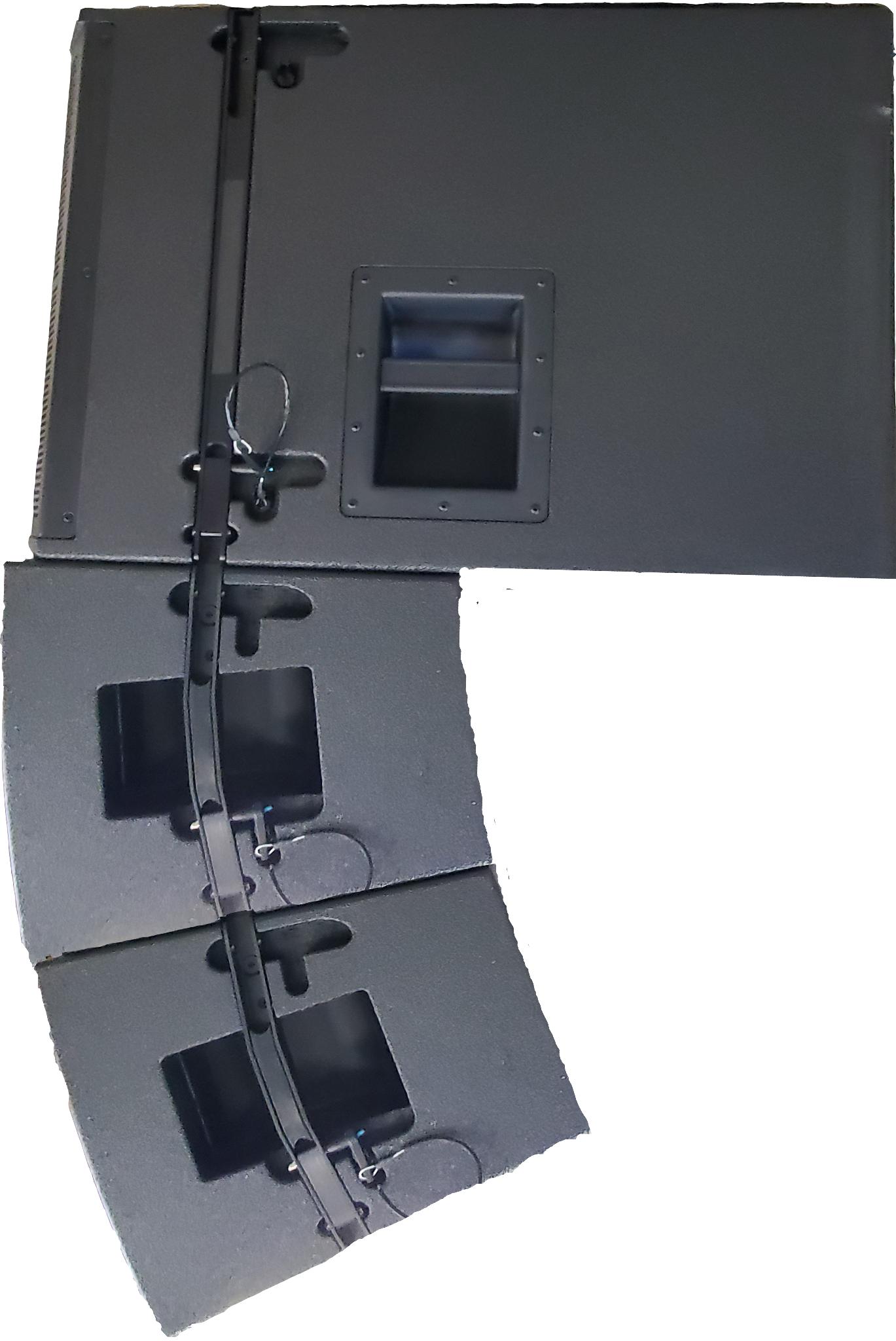

2 attached with internal flyware

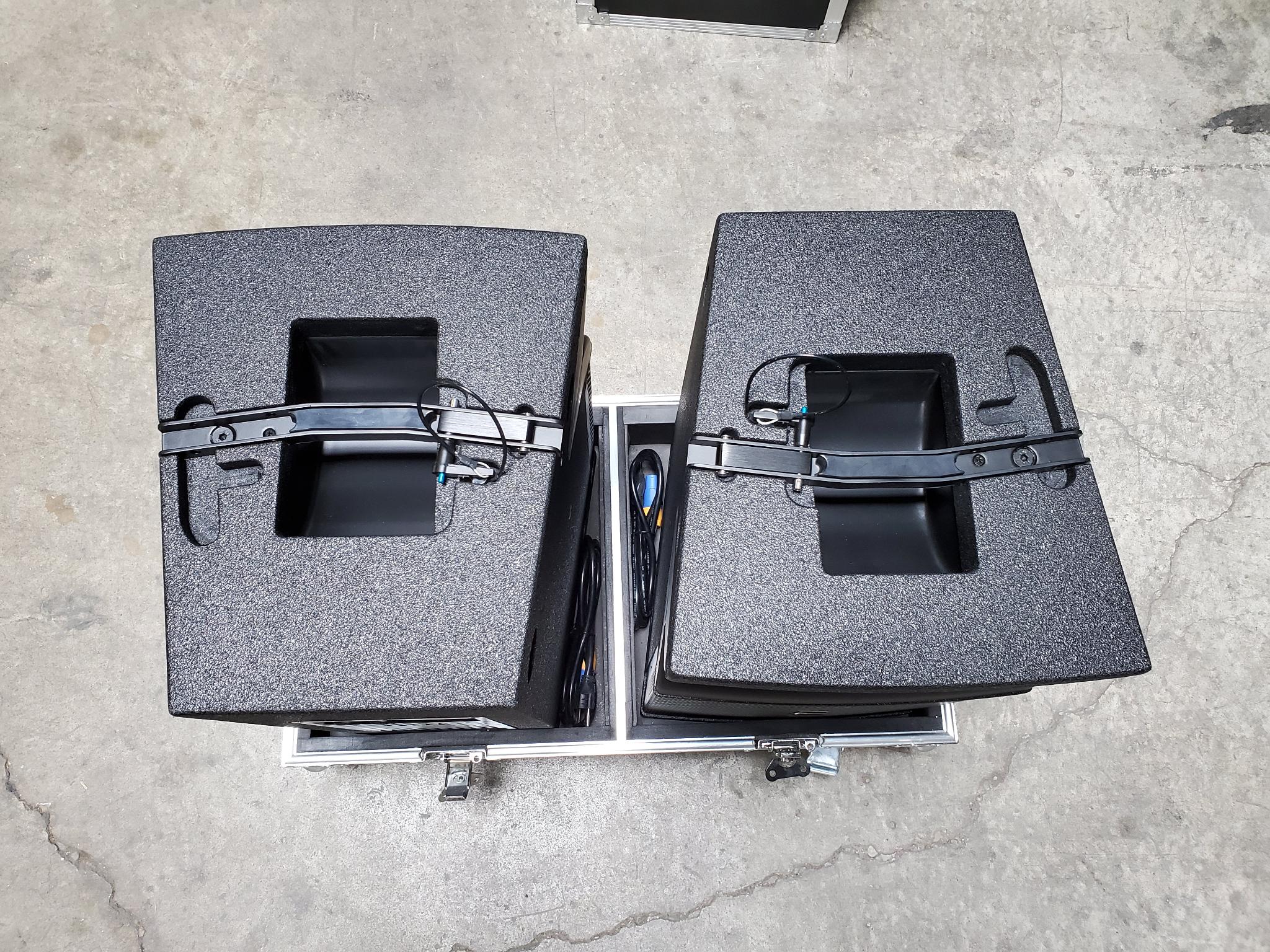

Top View
Side View

  • 1 Box Coverage per system: 100° x 15° (Horizontal x Vertical)
  • 2 Box Coverage Per System: 100° x 30° (Horizontal x Vertical)
  • 3 Box Coverage per system: 100° x 45° (Horizontal x Vertical)
  • 4 Box Coverage per system: 100° x 60° (Horizontal x Vertical)

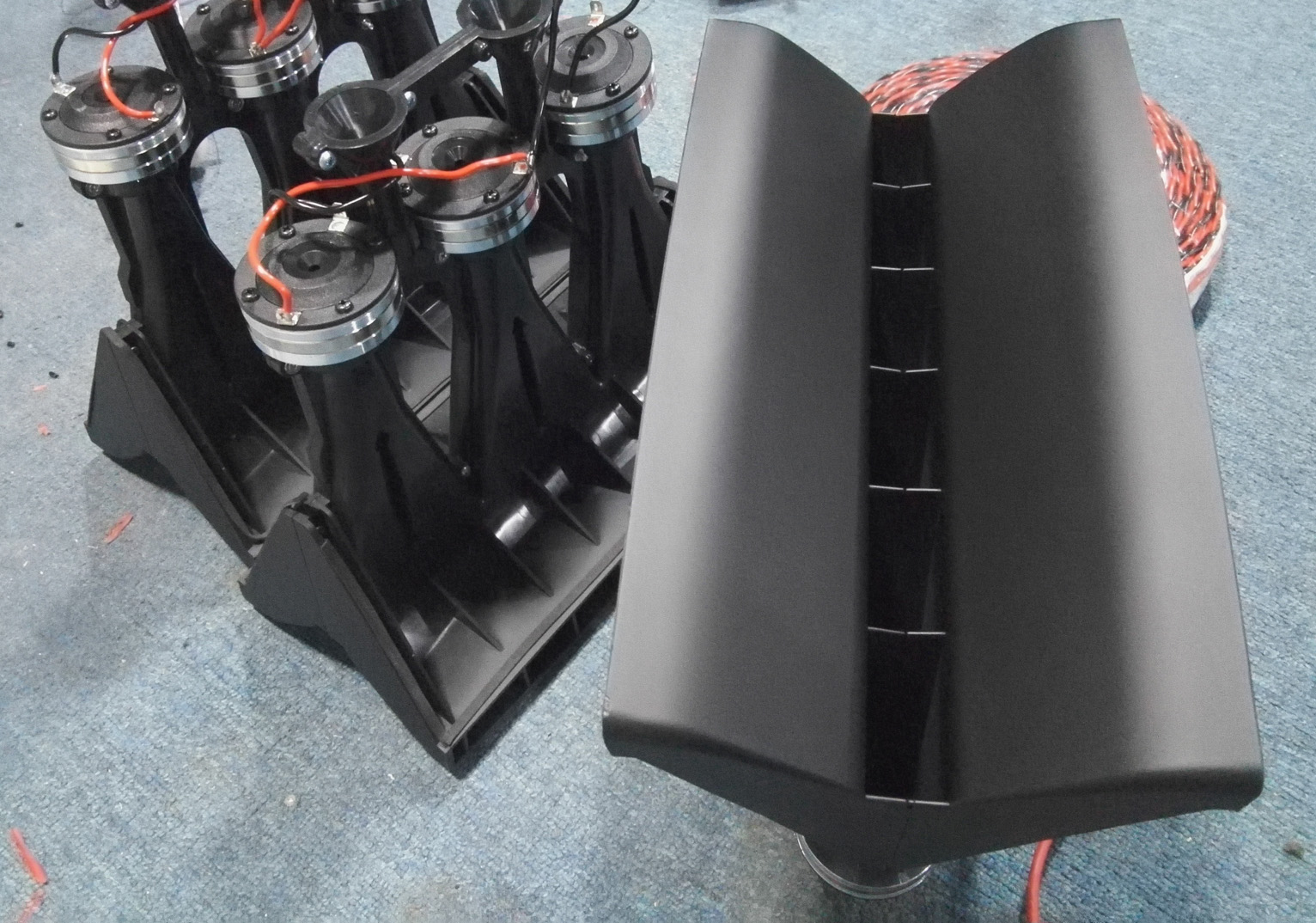

Horn array layout

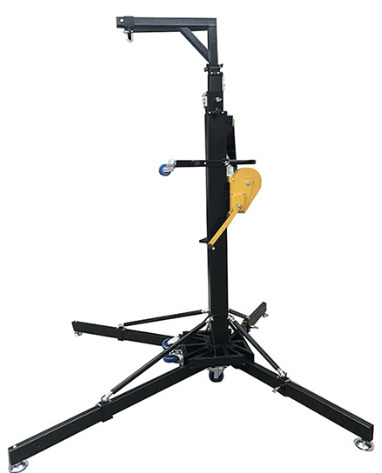

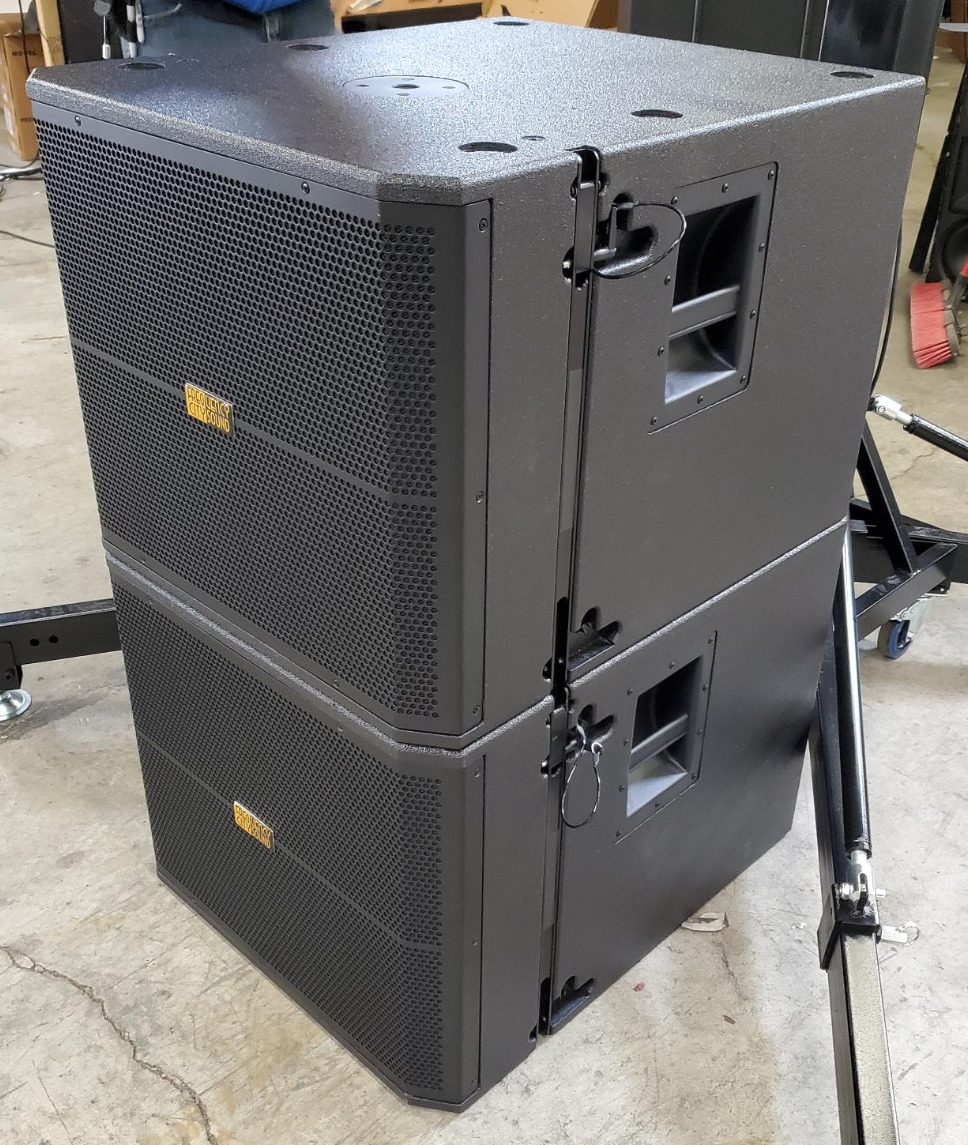

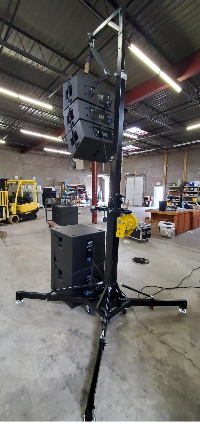

OPTIONAL 18" FLY SUB AND LINE ARRAY LIFT / CLICK PICTURES TO VIEW

VIDEOS AND PICTURES FROM FCS12LAP OWNERS

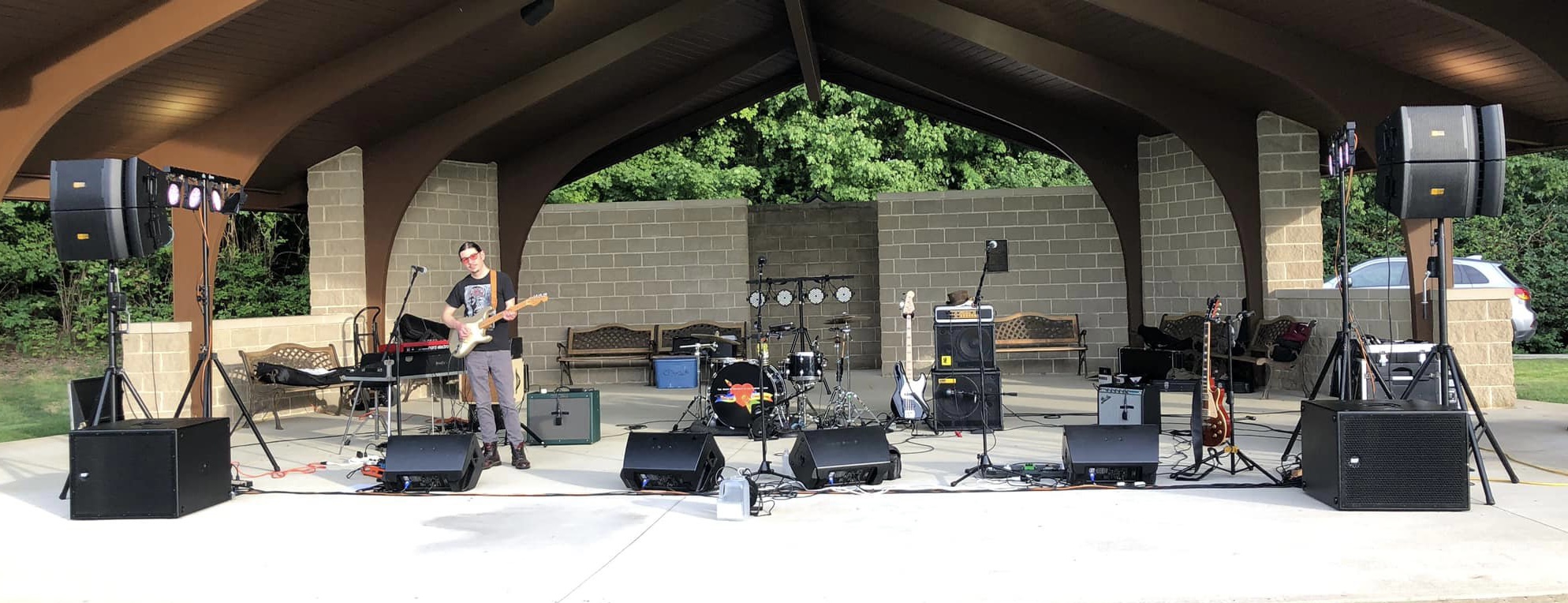

 Kevin Peters. 1-FCS12LAP per side.

Vinyl Revival Long Island NY Mike Festa's System with one FCS12LAP Per Side

FCS12LAP Using Pole Mounts
Charles Howe System Nashville TN

                       Jeff Stieby FCS12LAP System / Tom The Torpedoes                                          Charles Howe FCS12LAP w/ Line Array Lift System Nashville TN

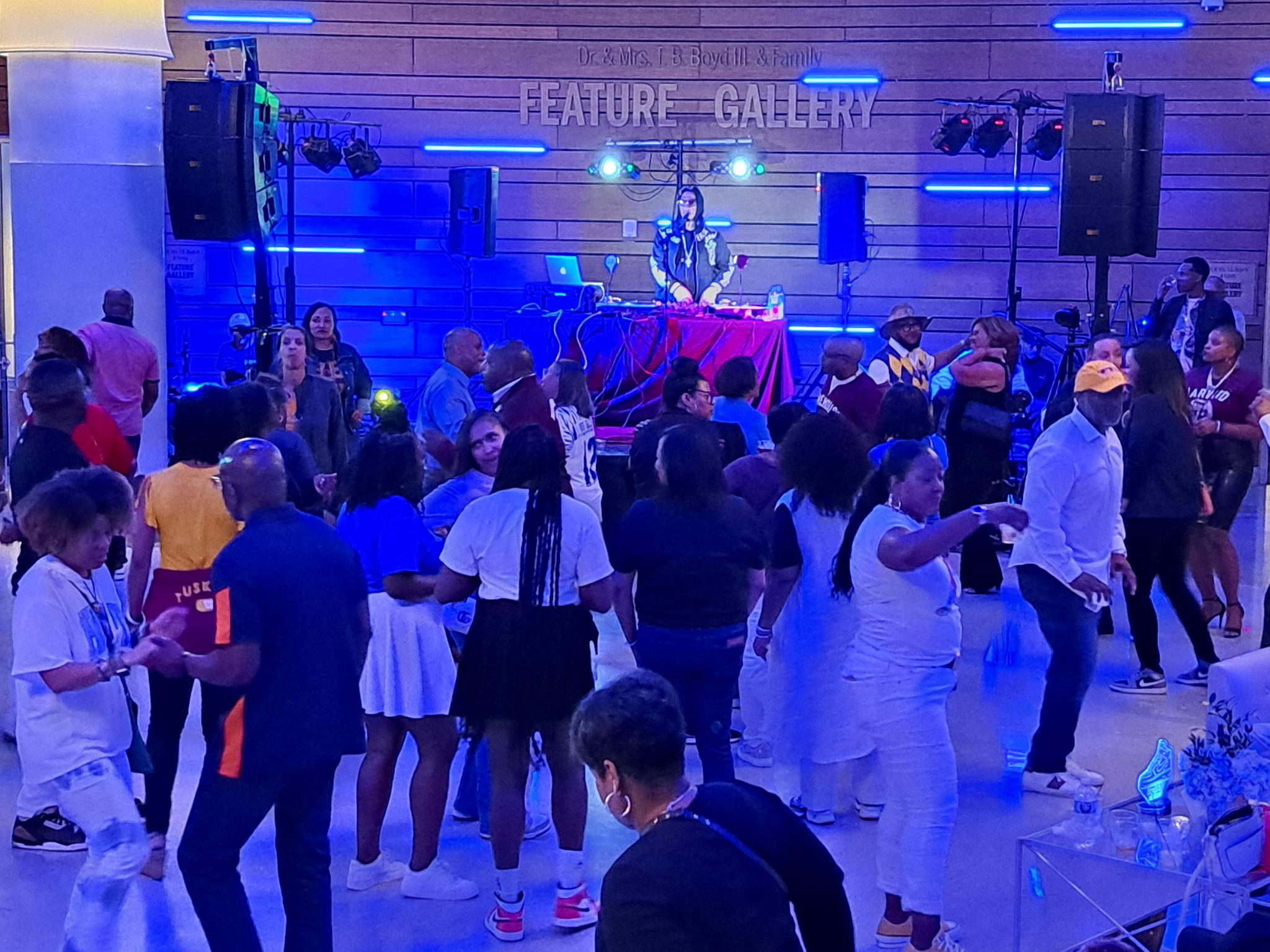

Celebrity DJ KID CAPRI was loving the sound supplied by CHOMCO at the National Museum of African American Music

DJ KID CAPRI was loving the sound supplied by CHOMCO  at the National Museum of African American Music

Kick Lee Greater Cincinnati Earth Coalition

Kick Lee

Cincinnati Music Accelerator

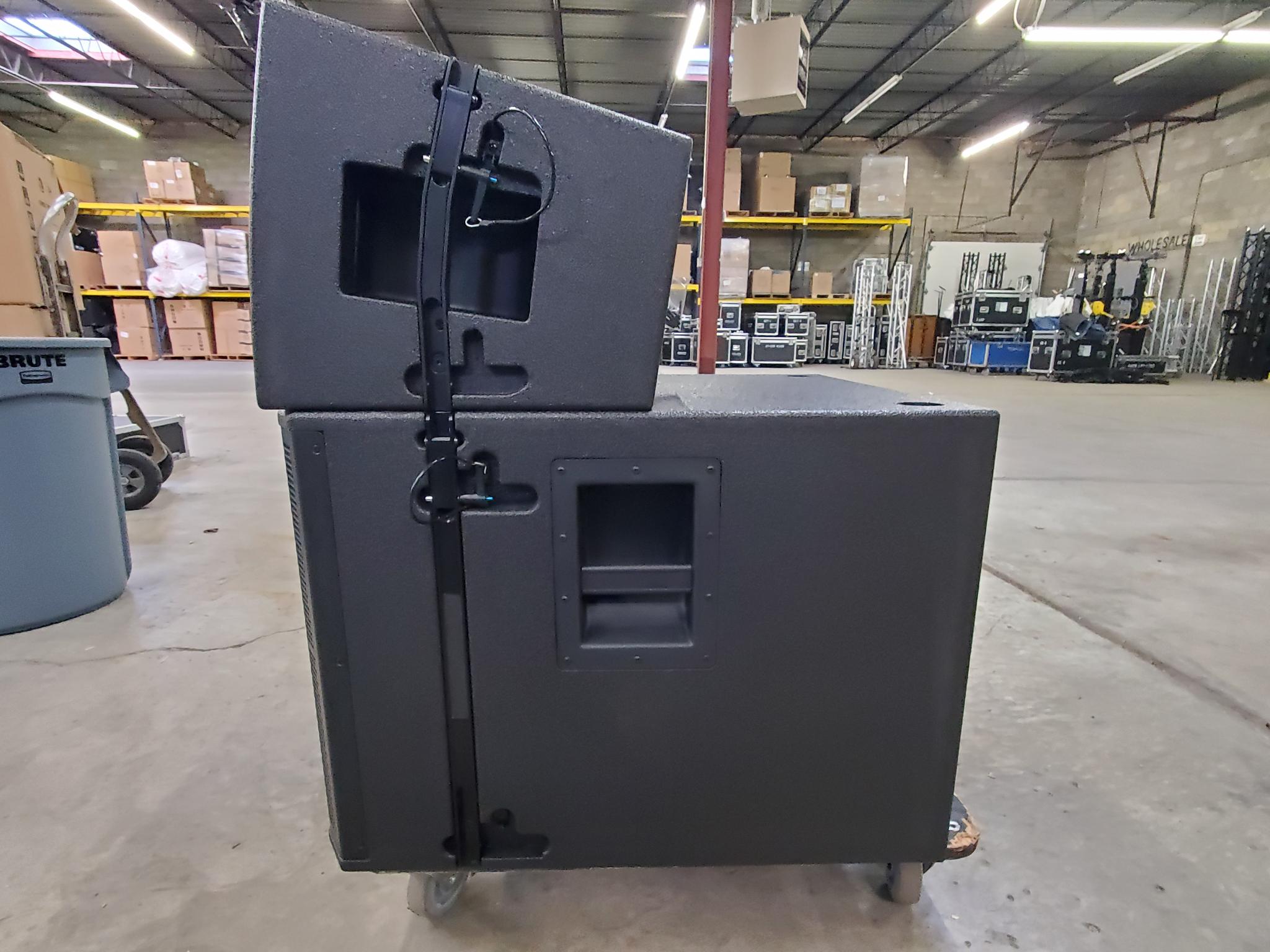

FCS12LAP & FCS18" Sub

"Incredible. We got nothing but compliments all day. Especially from the musicians and a couple of sound techs passing by."

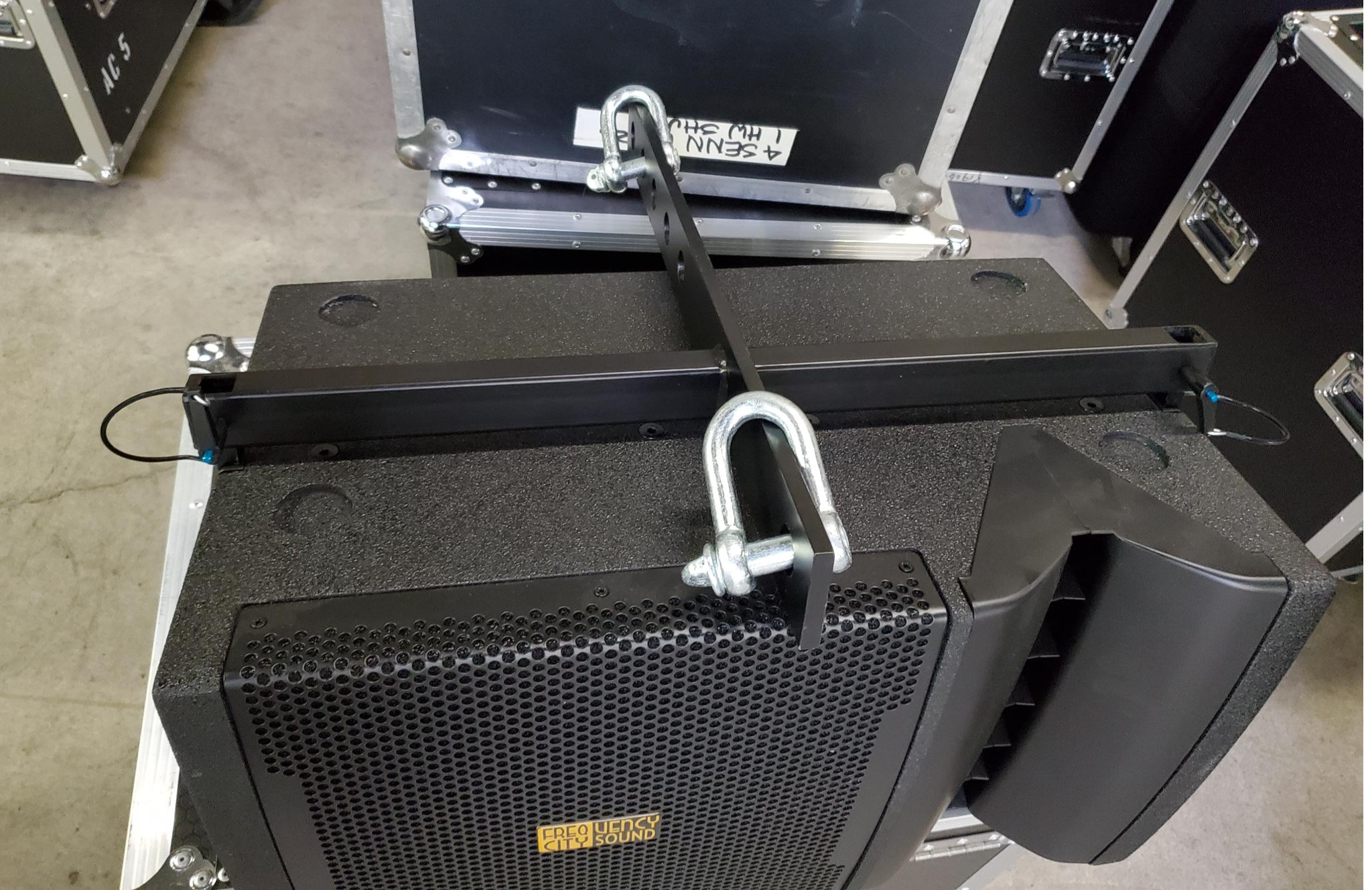

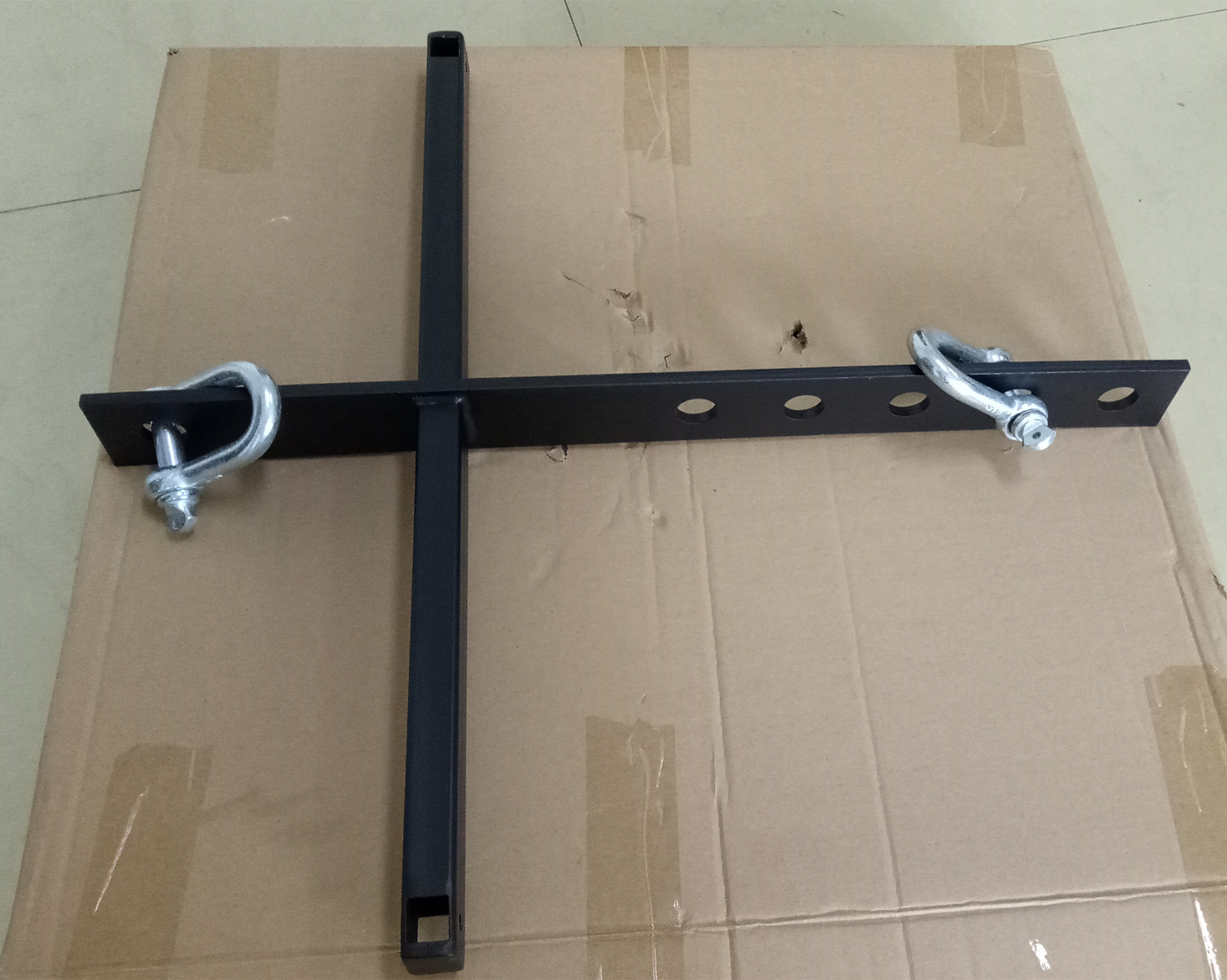

FCS12LAP Fly Bar (12lbs) $195 Delivered.

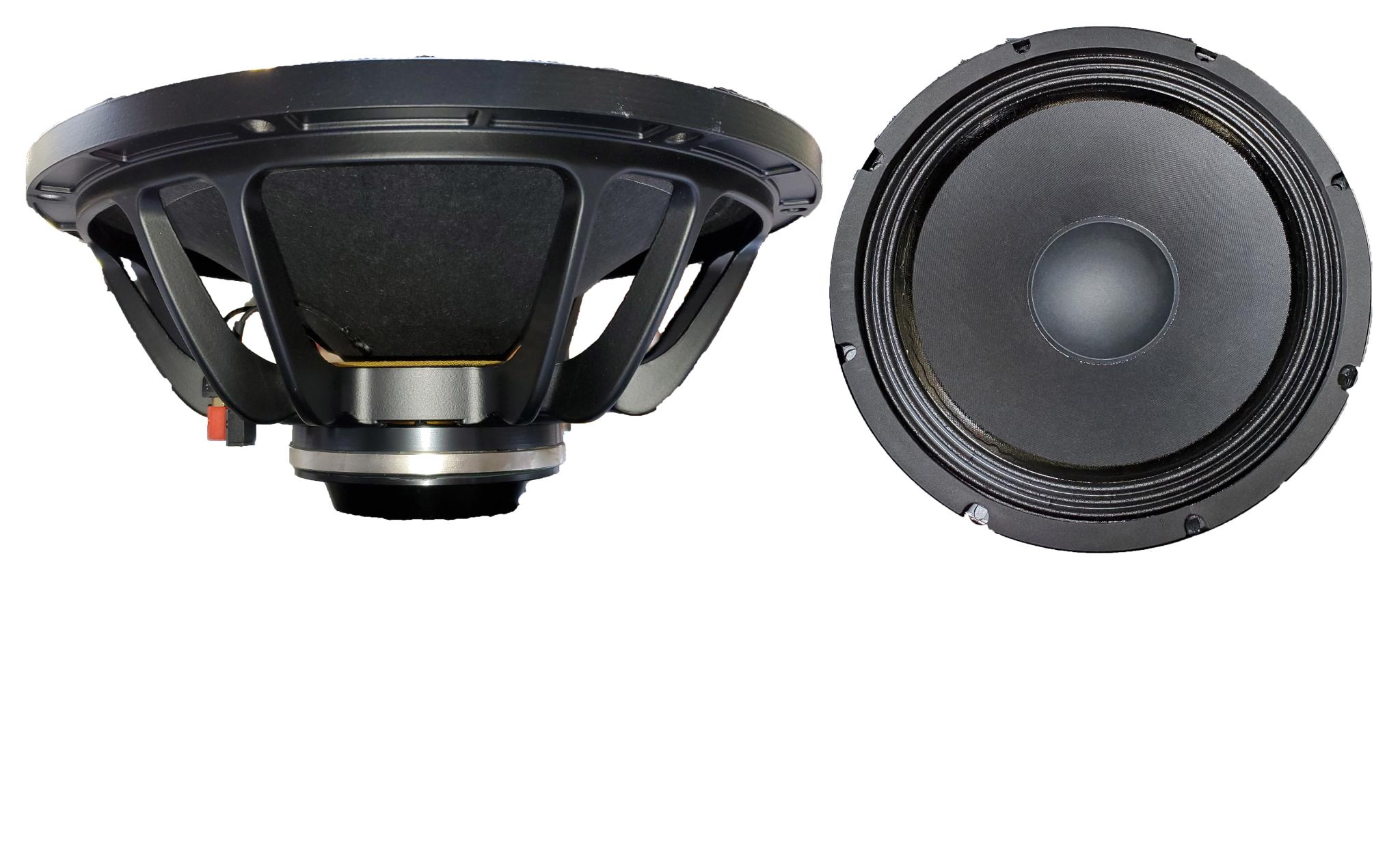

FCS12LAP Replacement 12" Speaker $175 Delivered

FCS12LAP Replacement Horn Diaphragm $39 Each Delivered

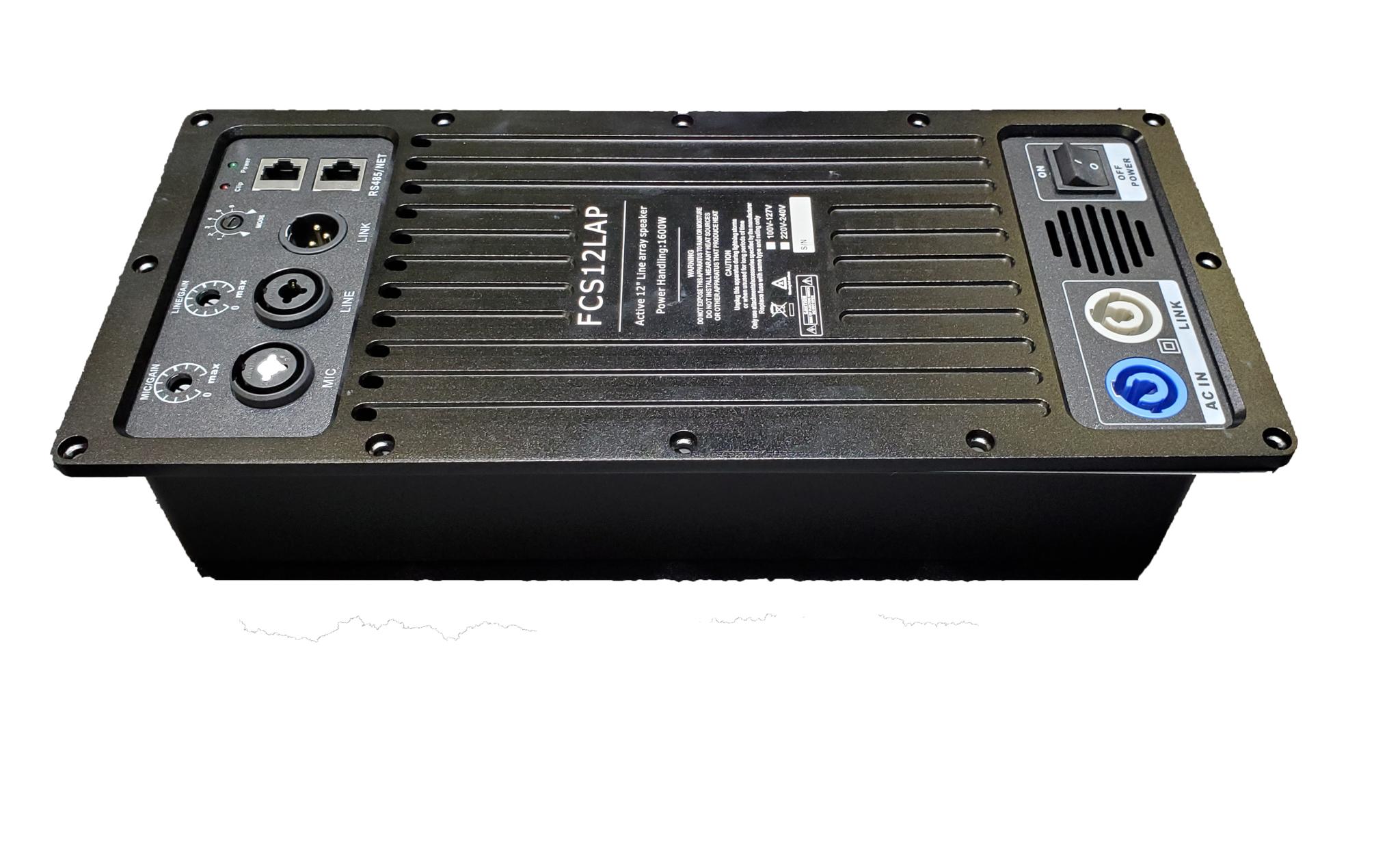

FCS12LAP Replacement Amp Module $299 Delivered

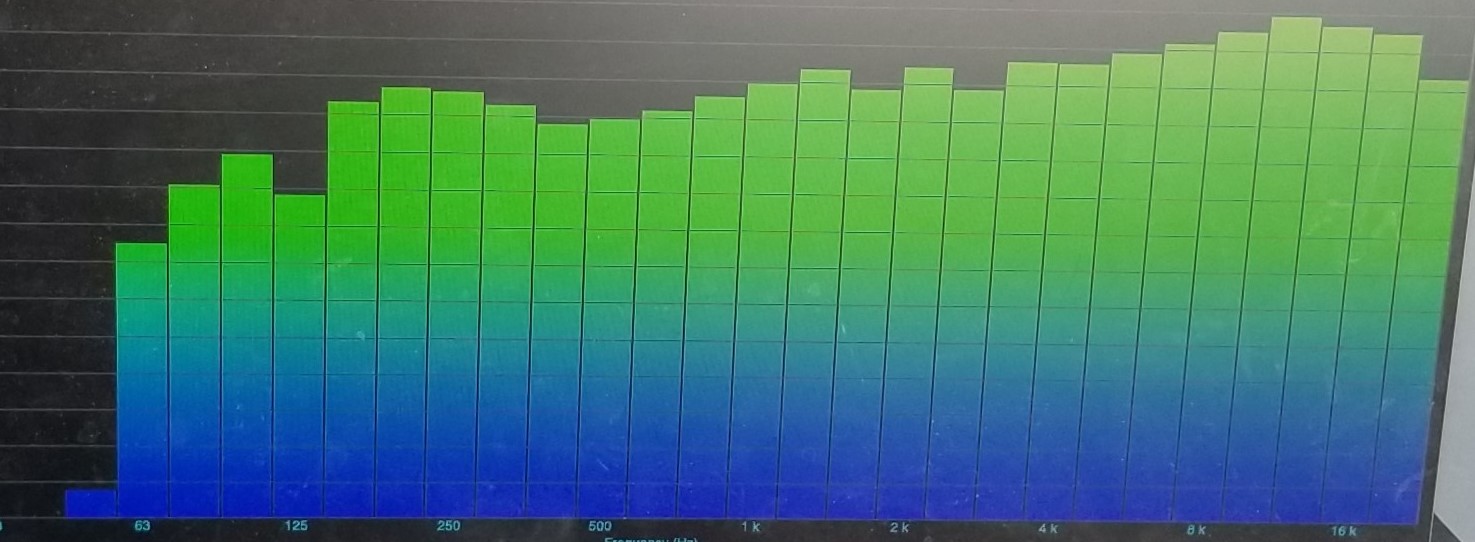

OUTPUT GRAPH OF FCS12LAP

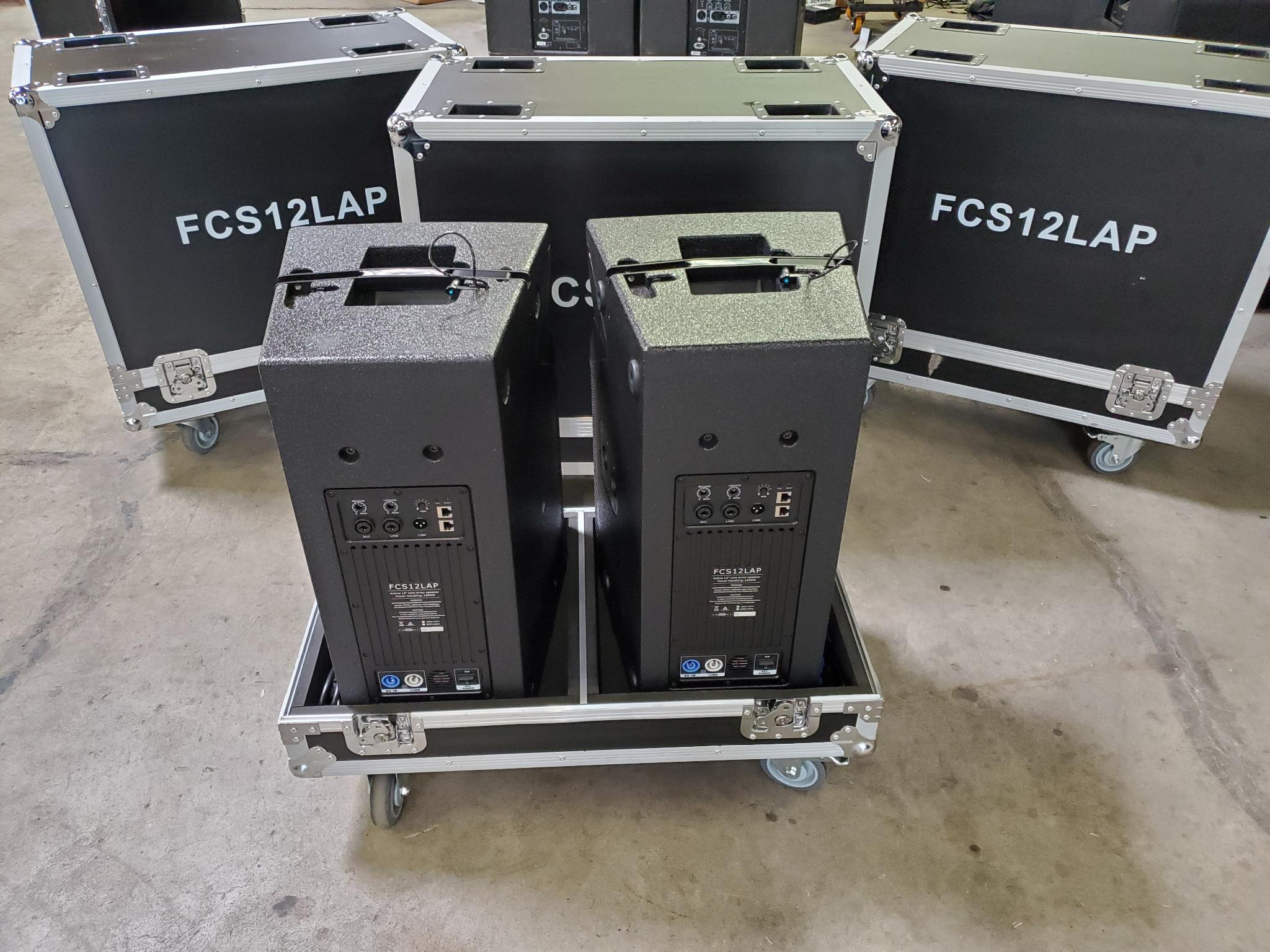

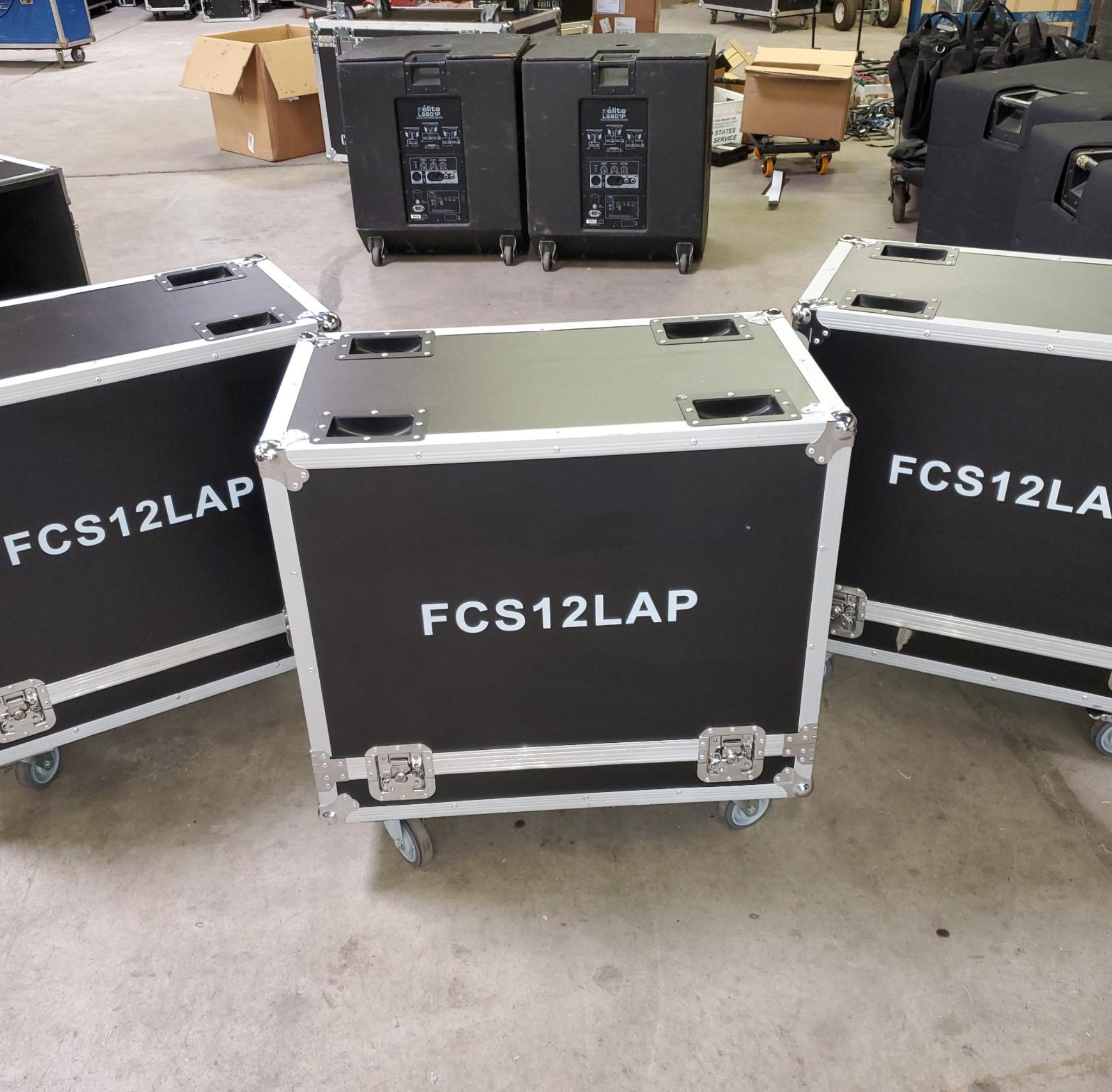

FCS12LAP 2/CASE Expect stock on cases early July
