Output Circuitry Class D

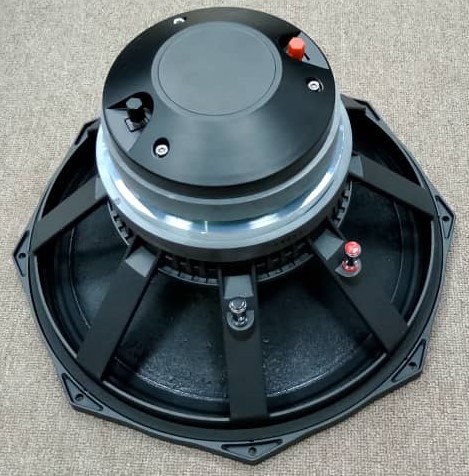

15” Speaker (385 mm) Ferrite LF Driver
Amp Power to 15” (AES) Watts 800
3” Coil Compression Driver / 1.5” Exit Horn
Amp Power to Horn (AES) Watts 300

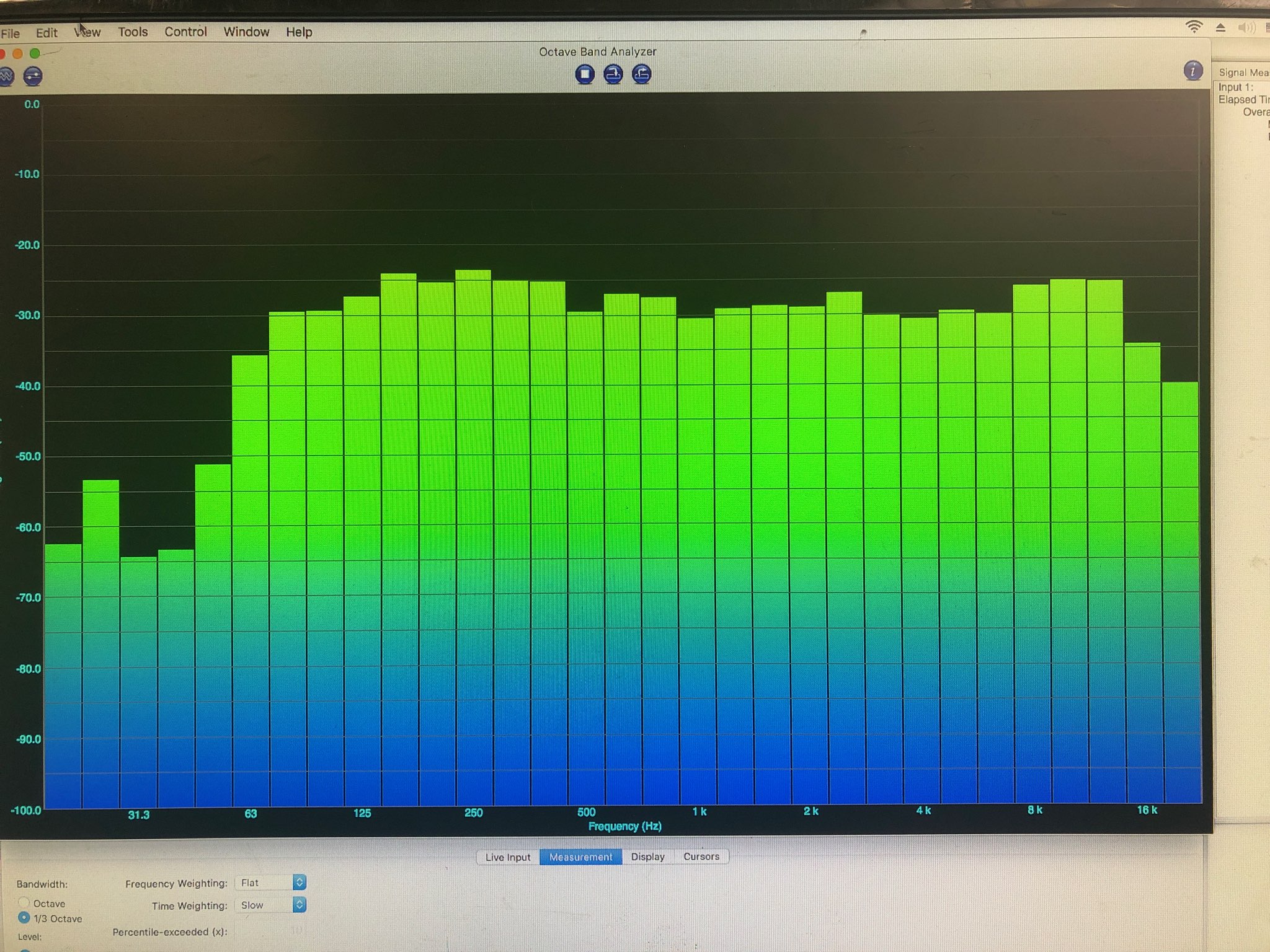

Freq Response 40 Hz – 19 Hz
Damping >400
Dispersion 60 Vertical / 40 Horizonal / Adjustable
Slew Rate 40V/µ
Sensitivity 1W @ 1m 99dB.
Nominal Peak SPL @ 1m 128dB.
Total Harmonic Distortion <0.5%
S/N >95dB
110V/60 Hz
Cooling System Smart Fan Cooling Control, Variable Speed Fans, Back to Front Venting
Input / Output Connectors Combo Jack, XLR, Speakon
Flying Points M8 Screw & Bracket
Stand Mount Flange 2
Height 17.4” Width 23.3” Depth 21.7”
Weight 83 Lbs
