Mipro ISM MI-58 Wireless IEM 5.8GHz System
Just like its big brother the Mipro MI909, the MI-58 will be a superior system when compared to what else is in the market in the under $700 range. The build is solid and professional. When I compare the competition, I always find myself looking at a component and thinking, "Well this is Mickey Mouse." No such parts on the MI-58 - Solid and well built. When you look at the MI909 page on my site, you will see lots of parts. That is all that ever goes wrong Mipro. Lost antennas, knobs, belt clips etc. The systems are built to last. I still have plenty of clients around the world still using the discontinued 808TR analog system 20 years later.
The MI-58 system is fully digital. With the 5.8GHz frequency range, I was unable to find a channel that was not open (this was a real treat).
Better Frequency Range - Bass players check this out. Due to the wider bandwidth, the frequency range is greatly expanded to 20Hz-23kHz. For comparison, the Sennheiser G4 is 25Hz-15kHz, the Shure PSM300 is 25Hz-15kHz and the Shure PSM900 is 38Hz – 15kHz.
The MI-58R Belt pack is the industries smallest, most lightweight fiberglass reinforced on the market. Granted, if you are the size of Andre the Giant, that is not relevant. But let us say you are one of those players that keeps the belt back in a pocket (heaven forbid) or, a female singer that needs to clip in under a dress or theater groups where belt pack real estate is tight. The MI-58R Belt pack is a game changer. The MI58 Belt Pack is powered by one ICR18500 Li-ion Rechargeable battery and has a backlit LCD screen. The latency is 2.2ms (REAL LOW).
The MI-58T Transmitter is housed in a half space metal case with an OLED Display Screen. Audio sampling has a 24-bit / 48kHz Rate. An available option is a RJ-45 DANTE interface.
The MI58 System WILL NOT do two mono mixes using two belt-packs.
Range: My warehouse is 150 feet long and I never walked out of the signal. The volume and clarity stayed consistent throughout my warehouse.
I would recommend some additional batteries that you can have charged as backups. I did notice a drop in performance right at the batteries life. And like any other IEM system, a freshly charged battery before your show is simply good practice.
IS THE MIPRO MI909 A BETTER SYSTEM THAN THE MI-58?
MI-58 advantages, In the 5.8GHz Freq Range, EVERY channel was open. That was quite a treat. I'd say the MI-58 System is well suited for one, two three player bands. When the number of wireless channels is higher, the MI909 is the way to go. The MI909 has antenna combiners, splitters, and antenna paddles (the MI-58 does not). The MI909 is Mipro's top of the line touring rig and I'd stack it up against anything on the market. The MI58 was made to compete (and eat the lunch of) the lower priced Ear Systems on the market. PSM300, Sennheiser XS, Galaxy, Carvin, CAD etc. When your budget is in this area - the MI-58 is a clear winner. If you have the $749 to spend the MI909 wins over the Sennheiser G4 and the Shure PSM900. So here's the question, do you need all those bells and whistles of the higher end systems? If the answer is no, hit the MI-58 add to cart now.

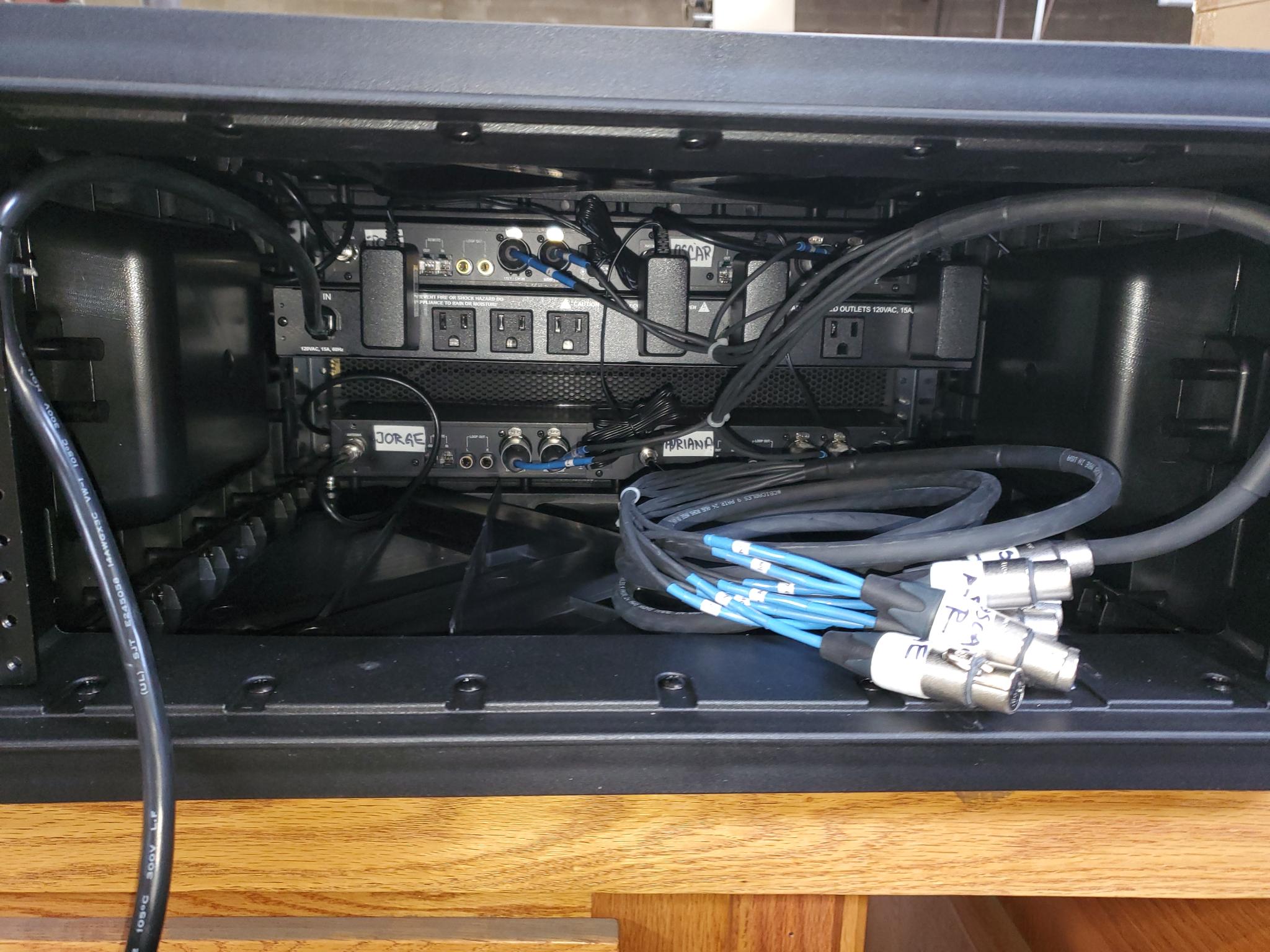

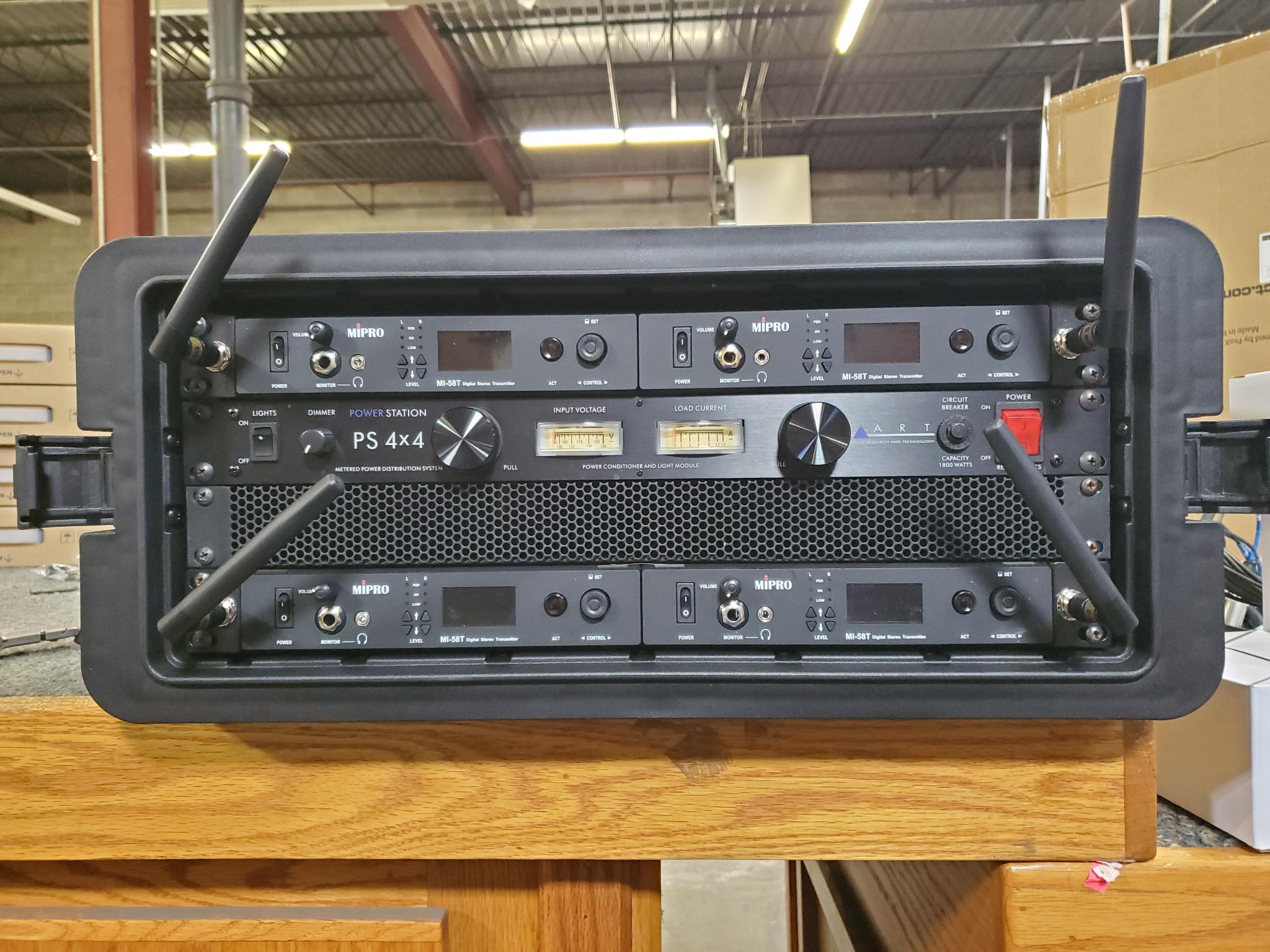

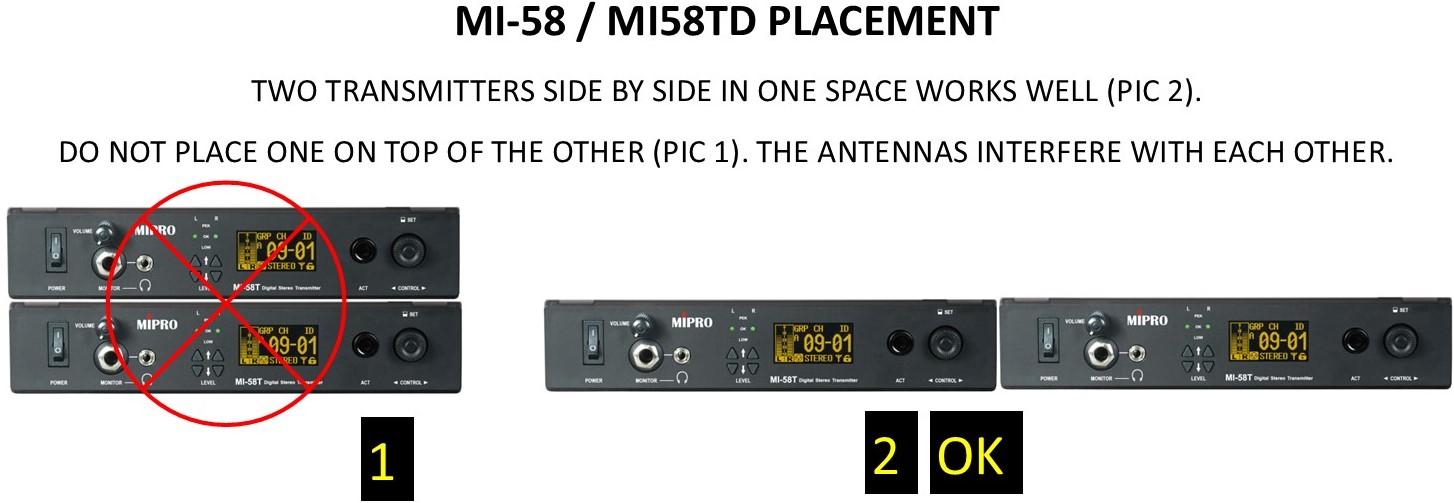

Received this tidbit from Mipro last year. I don't know what happened to make them say this but I wanted it in front of you when making your IEM System choice. I have three or four guys running 4 systems in the same rack with no issues. If you DO have an issue, remember this picture.

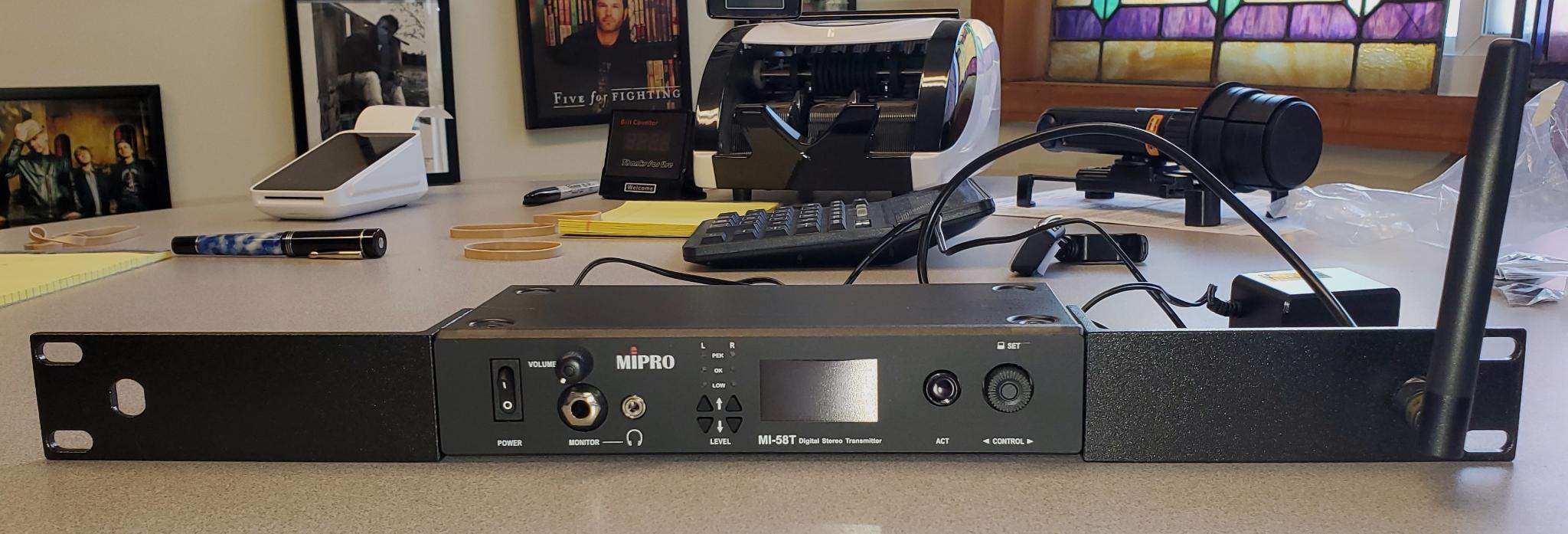

Here's a package deal we built separating the systems like this worked fine. They just can sit right on top of each other,
MI-58 (Non-Dante) System Packages
MIPRO MI-58 Package Non-Dante $499 Delivered
Includes Transmitter, Belt Pack, Charger Dock, Antenna and power supplies
MIPRO MI-58 Package Non-Dante $525 Delivered Includes Transmitter,
Belt Pack, Charger Dock, Antenna and power supplies. Adds Rack Mount Parts
MIPRO MI-58 Package Non-Dante $536 Delivered Includes Transmitter,
Belt Pack, Charger Dock, Antenna and power supplies.
Adds Rack Mount Parts & Back to Front Antenna extension
MI-58 (Dante) System Packages
MIPRO MI-58 Dante Package $599 Delivered
Includes Dante Transmitter, Belt Pack, Charger Dock, Antenna and power supplies
MIPRO MI-58 Dante Package $625 Delivered
Includes Dante Transmitter, Belt Pack, Charger Dock, Antenna and power supplies. Adds Rack Mount Parts
MIPRO MI-58 Dante Package $636 Delivered
Includes Dante Transmitter, Belt Pack, Charger Dock, Antenna and power supplies. Adds Rack Mount Parts & Back to Front Antenna Extension
QUICK OVERVIEW OF FUNCTIONS STEVE WINWOOD'S STUDIO USING MI58

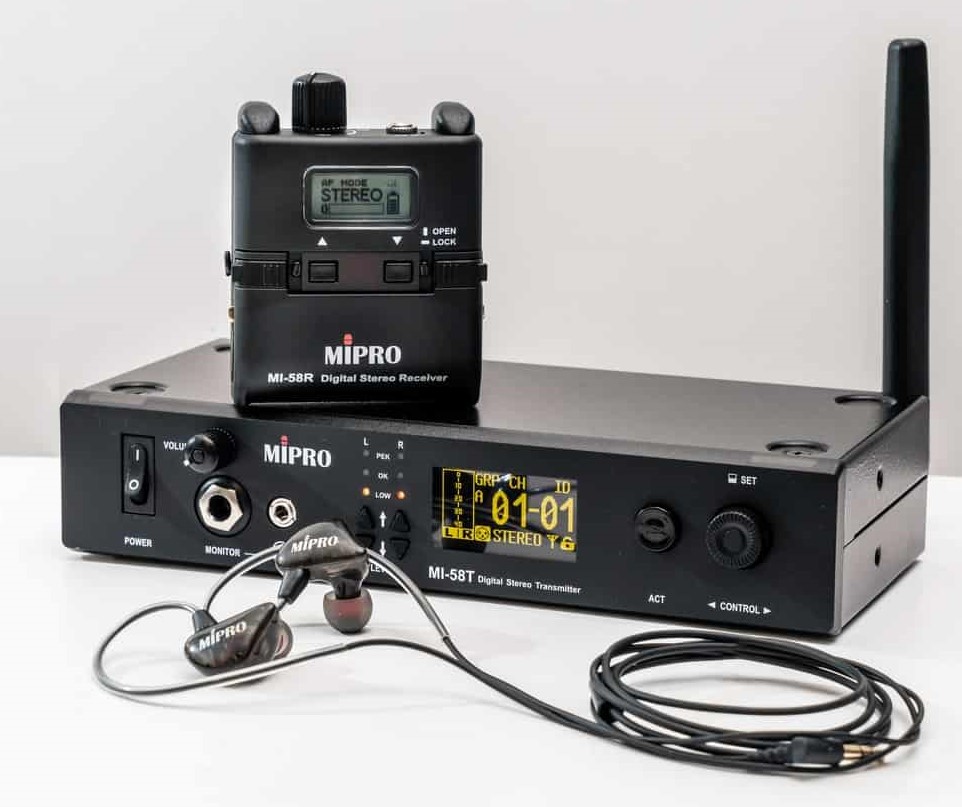

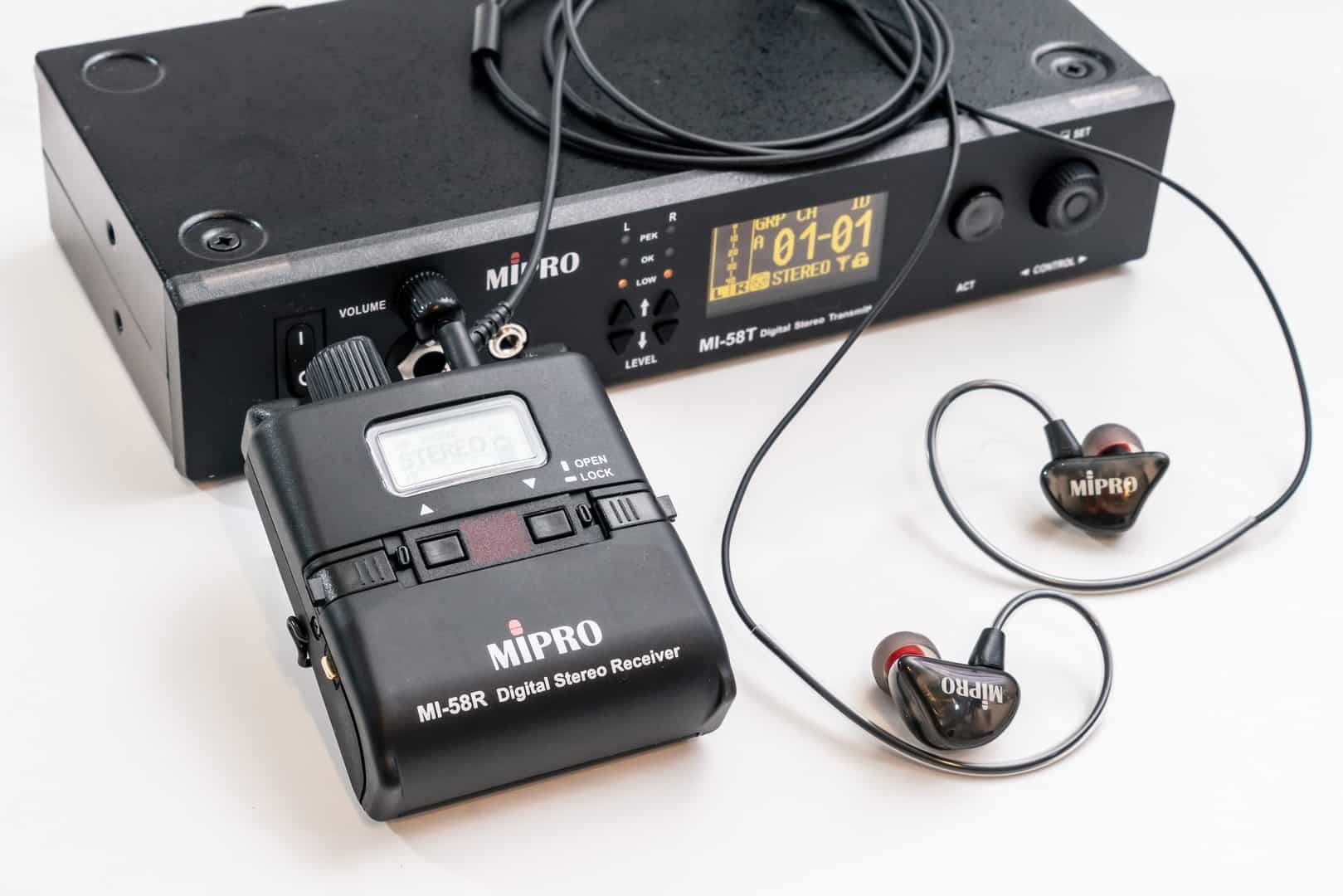

The new MIPRO MI-58 digital
stereo in-ear monitor system.

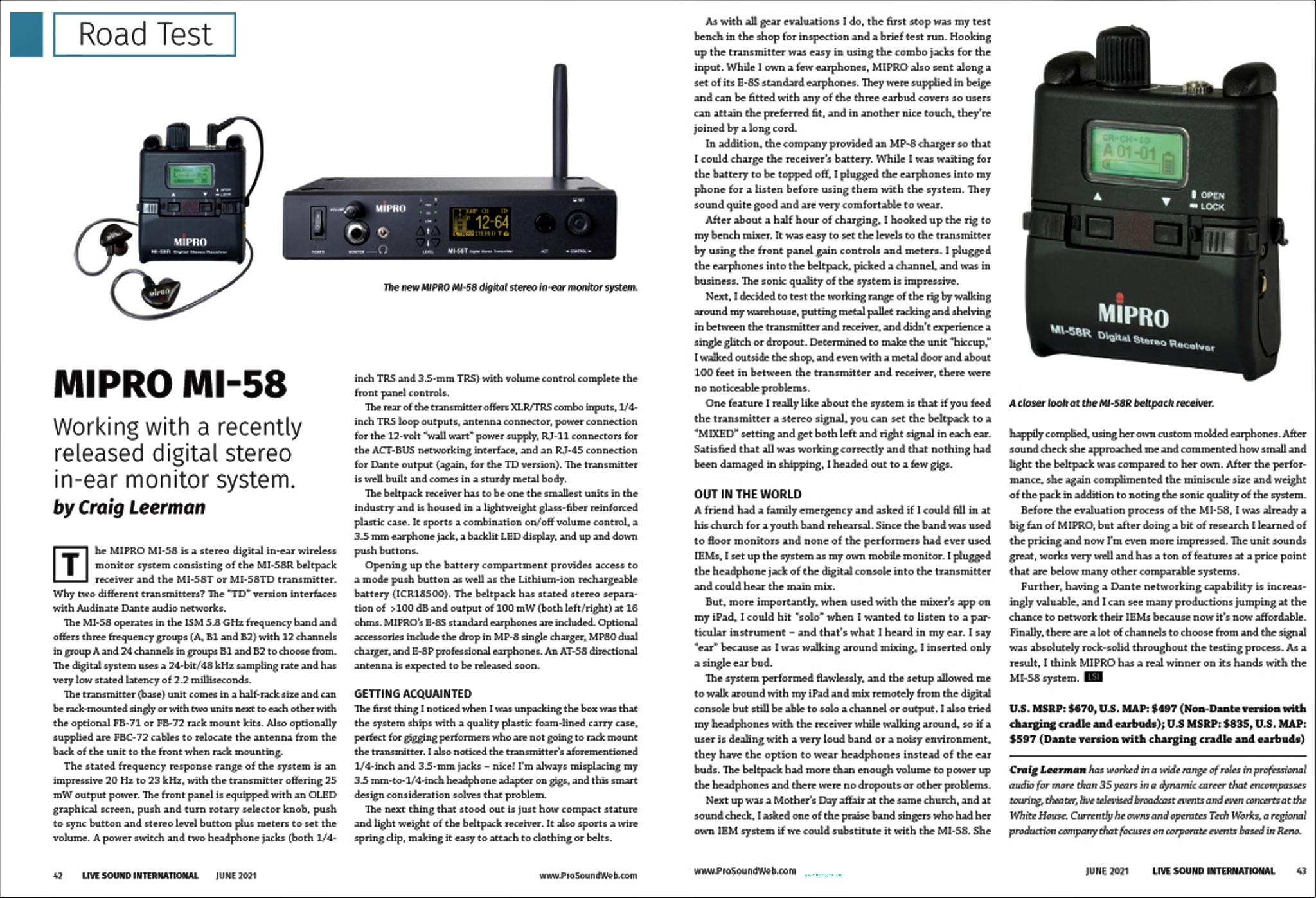

LIVE SOUND INTERNATIONAL
By Craig Leerman

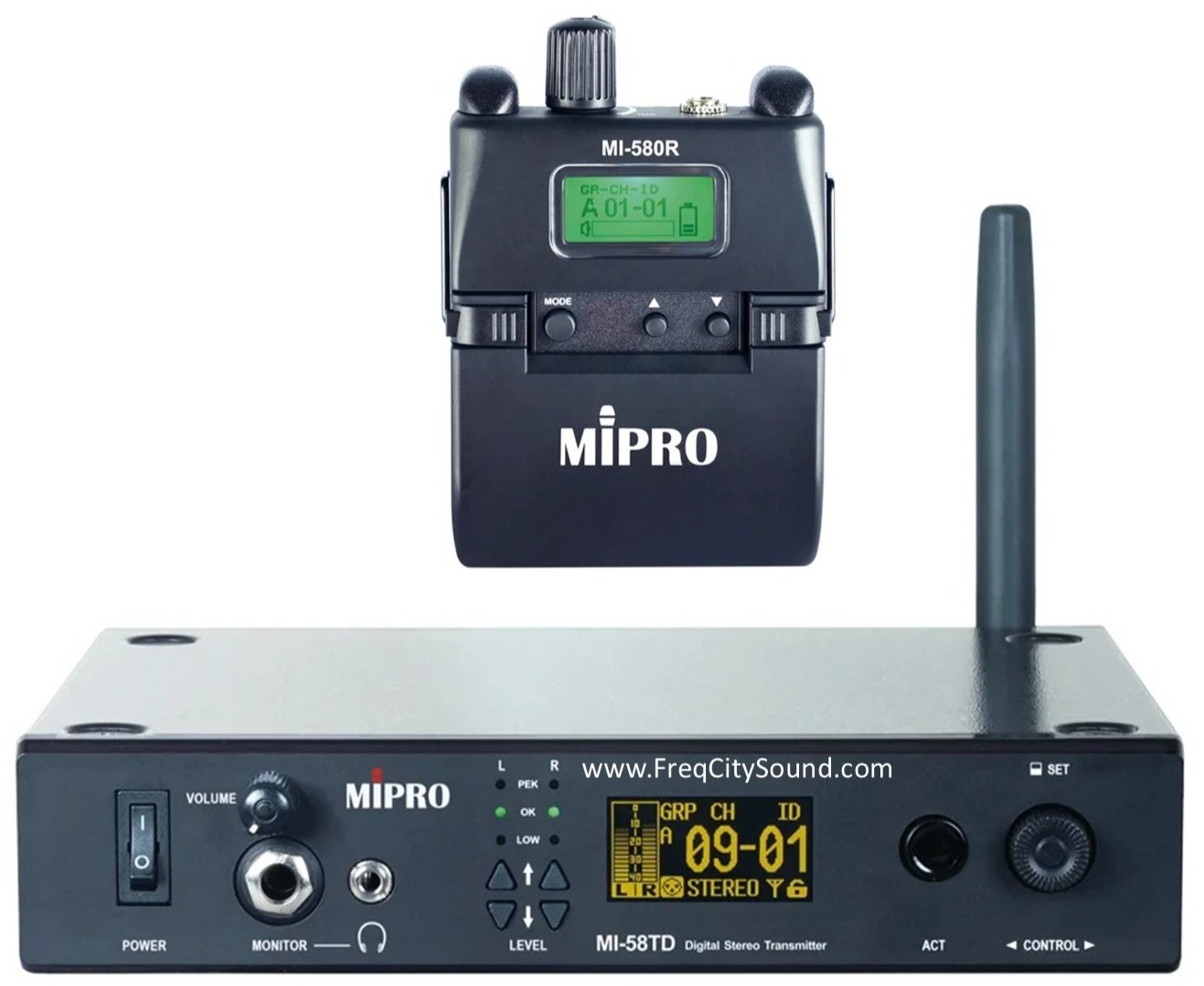

Road Test he MIPRO MI-58 is a stereo digital in-ear wireless monitor system consisting of the MI-58R beltpack receiver and the MI-58T or MI-58TD transmitter. Why two different transmitters? The “TD” version interfaces with Audinate Dante audio networks. The MI-58 operates in the ISM 5.8 GHz frequency band and offers three frequency groups (A, B1 and B2) with 12 channels in group A and 24 channels in groups B1 and B2 to choose from. The digital system uses a 24-bit/48 kHz sampling rate and has very low stated latency of 2.2 milliseconds.

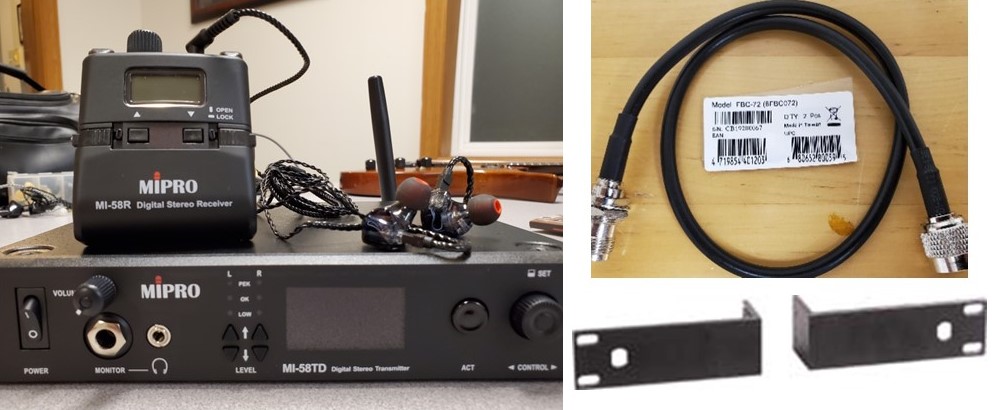

The transmitter (base) unit comes in a half-rack size and can be rack-mounted singly or with two units next to each other with the optional FB-71 or FB-72 rack mount kits. Also optionally supplied are FBC-72 cables to relocate the antenna from the back of the unit to the front when rack mounting. The stated frequency response range of the system is an impressive 20 Hz to 23 kHz, with the transmitter offering 25 mW output power.
The front panel is equipped with an OLED graphical screen, push and turn rotary selector knob, push to sync button and stereo level button plus meters to set the volume. A power switch and two headphone jacks (both 1/4- inch TRS and 3.5-mm TRS) with volume control complete the front panel controls. The rear of the transmitter offers XLR/TRS combo inputs, 1/4- inch TRS loop outputs, antenna connector, power connection for the 12-volt “wall wart” power supply, RJ-11 connectors for the ACT-BUS networking interface, and an RJ-45 connection for Dante output (again, for the TD version). The transmitter is well built and comes in a sturdy metal body.
The beltpack receiver has to be one the smallest units in the industry and is housed in a lightweight glass-fiber reinforced plastic case. It sports a combination on/off volume control, a 3.5 mm earphone jack, a backlit LED display, and up and down push buttons. Opening up the battery compartment provides access to a mode push button as well as the Lithium-ion rechargeable battery (ICR18500). The beltpack has stated stereo separation of >100 dB and output of 100 mW (both left/right) at 16 ohms.

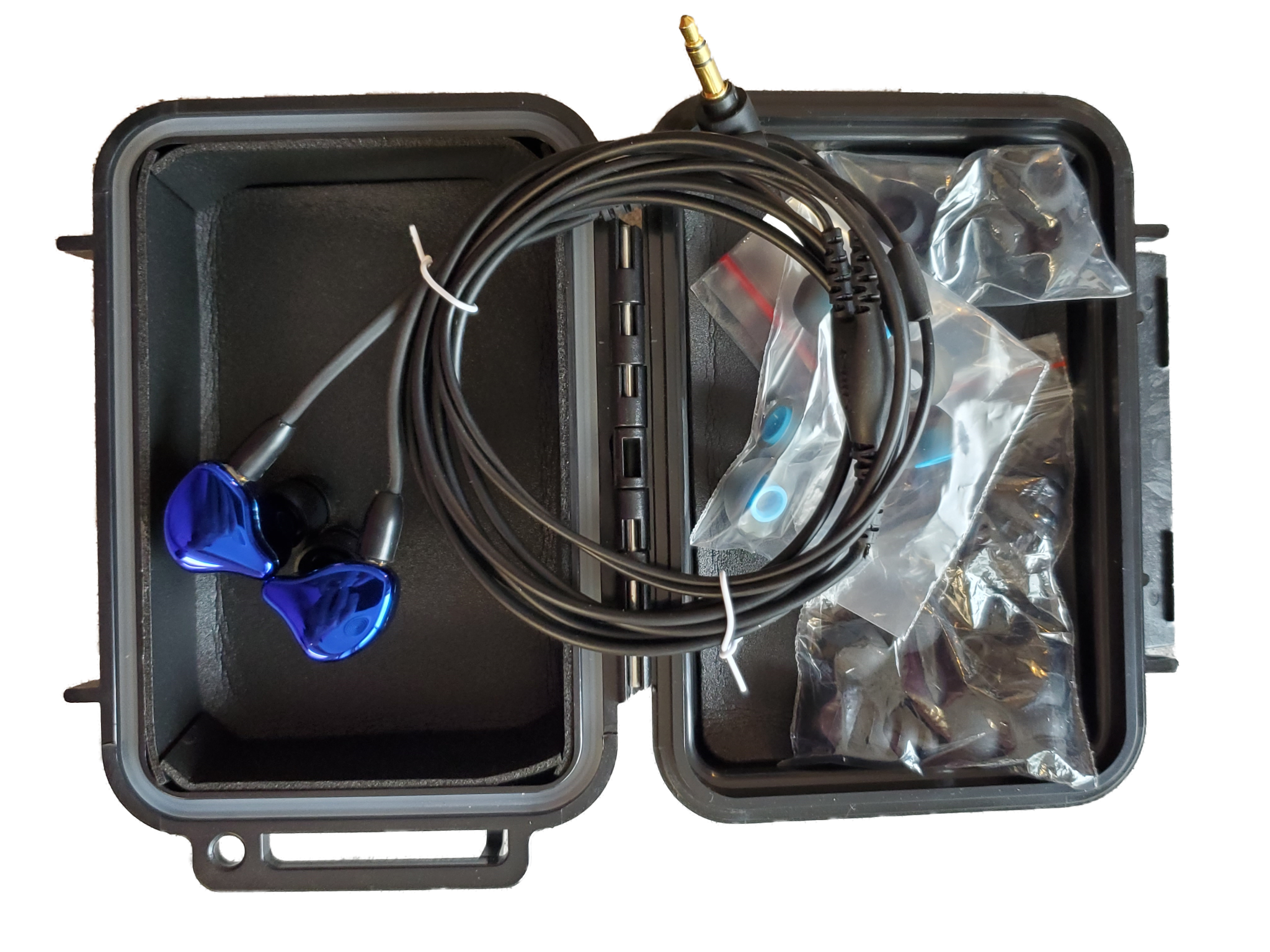

GETTING ACQUAINTED The first thing I noticed when I was unpacking the box was that the system ships with a quality plastic foam-lined carry case, perfect for gigging performers who are not going to rack mount the transmitter. I also noticed the transmitter’s aforementioned 1/4-inch and 3.5-mm jacks – nice! I’m always misplacing my 3.5 mm-to-1/4-inch headphone adapter on gigs, and this smart design consideration solves that problem. The next thing that stood out is just how compact stature and light weight of the beltpack receiver. It also sports a wire spring clip, making it easy to attach to clothing or belts.

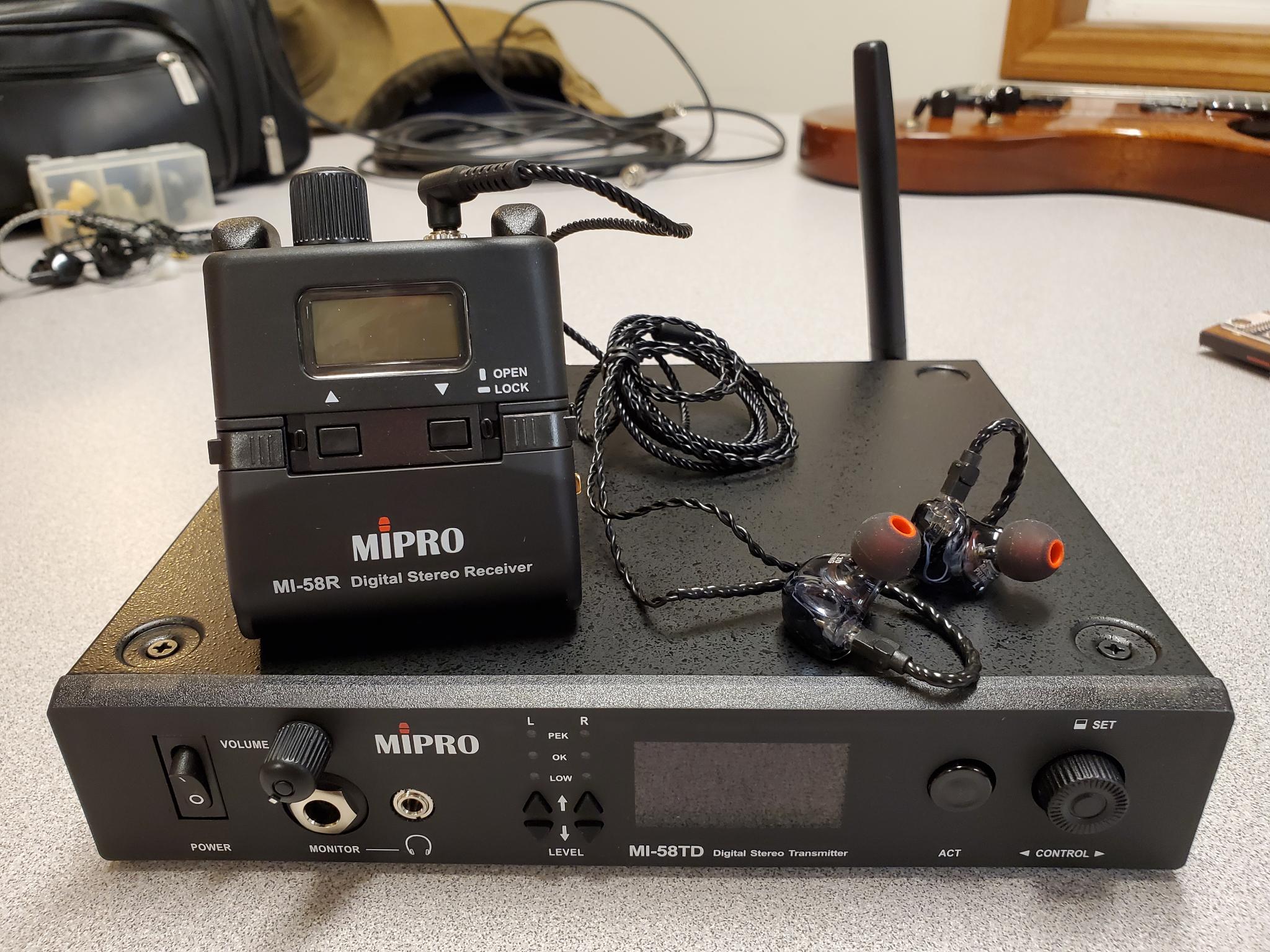

As with all gear evaluations I do, the first stop was my test bench in the shop for inspection and a brief test run. Hooking up the transmitter was easy in using the combo jacks for the input. While I own a few earphones, MIPRO also sent along a set of its E-8S standard earphones. They were supplied in beige and can be fitted with any of the three earbud covers so users can attain the preferred fit, and in another nice touch, they’re joined by a long cord. In addition, the company provided an MP-8 charger so that I could charge the receiver’s battery. While I was waiting for the battery to be topped off, I plugged the earphones into my phone for a listen before using them with the system. They sound quite good and are very comfortable to wear. After about a half hour of charging, I hooked up the rig to my bench mixer. It was easy to set the levels to the transmitter by using the front panel gain controls and meters. I plugged the earphones into the beltpack, picked a channel, and was in business. The sonic quality of the system is impressive. Next, I decided to test the working range of the rig by walking around my warehouse, putting metal pallet racking and shelving in between the transmitter and receiver, and didn’t experience a single glitch or dropout. Determined to make the unit “hiccup,” I walked outside the shop, and even with a metal door and about 100 feet in between the transmitter and receiver, there were no noticeable problems.
One feature I really like about the system is that if you feed the transmitter a stereo signal, you can set the beltpack to a “MIXED” setting and get both left and right signal in each ear.
Satisfied that all was working correctly and that nothing had been damaged in shipping, I headed out to a few gigs. OUT IN THE WORLD A friend had a family emergency and asked if I could fill in at his church for a youth band rehearsal. Since the band was used to floor monitors and none of the performers had ever used IEMs, I set up the system as my own mobile monitor. I plugged the headphone jack of the digital console into the transmitter and could hear the main mix. But, more importantly, when used with the mixer’s app on my iPad, I could hit “solo” when I wanted to listen to a particular instrument – and that’s what I heard in my ear. I say “ear” because as I was walking around mixing, I inserted only a single ear bud.
The system performed flawlessly, and the setup allowed me to walk around with my iPad and mix remotely from the digital console but still be able to solo a channel or output. I also tried my headphones with the receiver while walking around, so if a user is dealing with a very loud band or a noisy environment, they have the option to wear headphones instead of the ear buds.
The beltpack had more than enough volume to power up the headphones there were no dropouts or other problems. Next up was a Mother’s Day affair at the same church, and at sound check, I asked one of the praise band singers who had her own IEM system if we could substitute it with the MI-58. She happily complied, using her own custom molded earphones. After sound check she approached me and commented how small and light the beltpack was compared to her own. After the performance, she again complimented the miniscule size and weight of the pack in addition to noting the sonic quality of the system.
Before the evaluation process of the MI-58, I was already a big fan of MIPRO, but after doing a bit of research I learned of the pricing and now I’m even more impressed. The unit sounds great, works very well and has a ton of features at a price point that are below many other comparable systems. Further, having a Dante networking capability is increasingly valuable, and I can see many productions jumping at the chance to network their IEMs because now it’s now affordable. Finally, there are a lot of channels to choose from and the signal was absolutely rock-solid throughout the testing process. As a result, I think MIPRO has a real winner on its hands with the MI-58 system.
Non-Dante version with charging cradle and earbuds - MSRP: $670, U.S. MAP: $499
Dante version with charging cradle and earbuds MSRP: $835, U.S. MAP: $599
Craig Leerman has worked in a wide range of roles in professional audio for more than 35 years in a dynamic career that encompasses touring, theater, live televised broadcast events and even concerts at the White House. Currently he owns and operates Tech Works, a regional production company that focuses on corporate events based in Reno.
I was asked a latency question on the Dante version. Here's the response back from Mipro:
The output latency is higher using the Dante input vs the Analog inputs on the Mipro ISM MI-58.
The amount depends on the speed and traffic on the network. The typical default latency for a Dante audio device is 1 msec.
It is discussed in this link. https://dev.audinate.com/GA/dante-controller/userguide/webhelp/content/latency.htm
Individual Mipro MI-58 Components

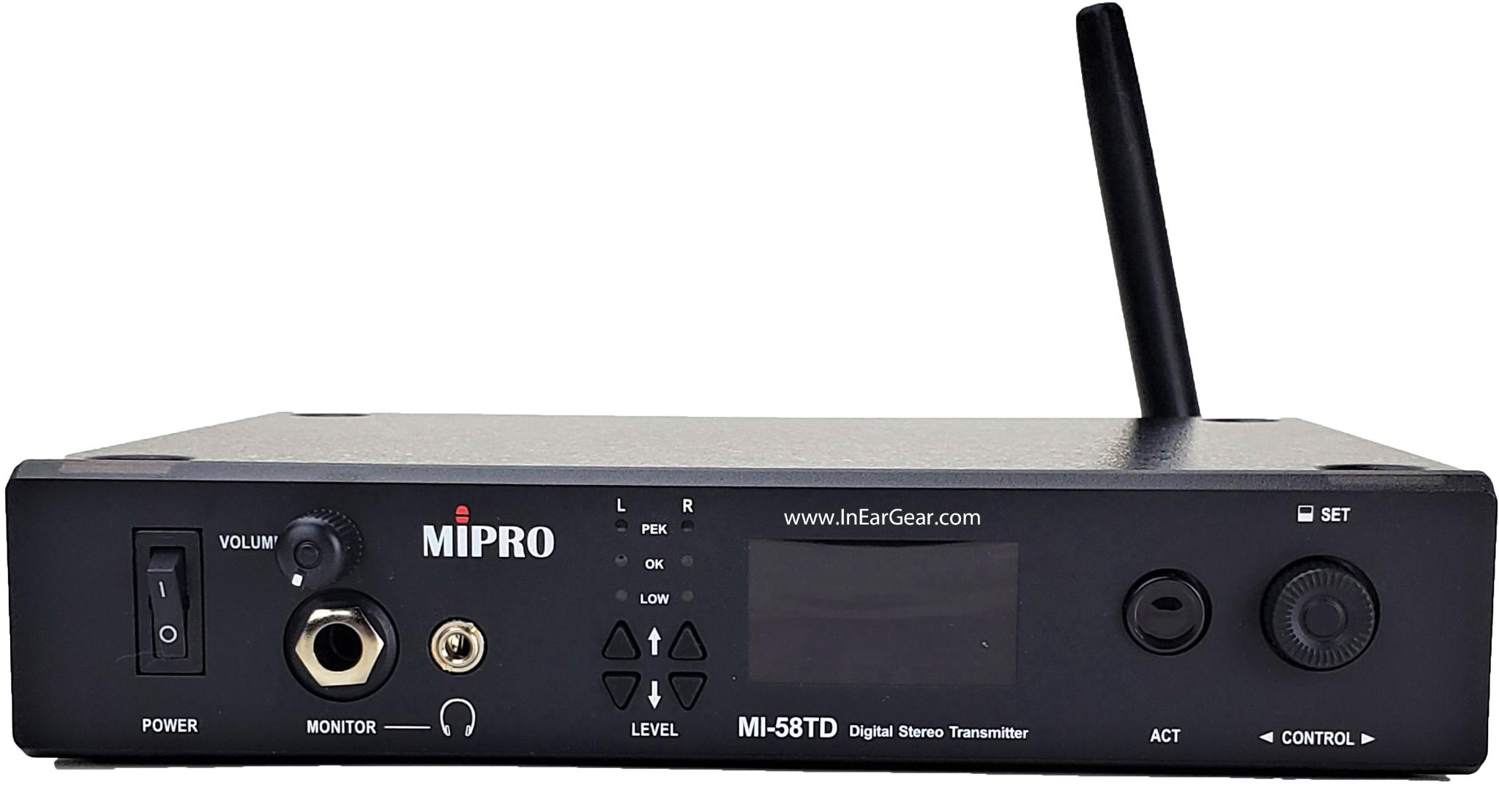

MI-58 Transmitter with
Dante Interface $399
MI-58R Belt Pack

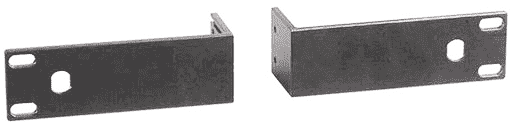

Mipro FB-71 Rack Mount Kit

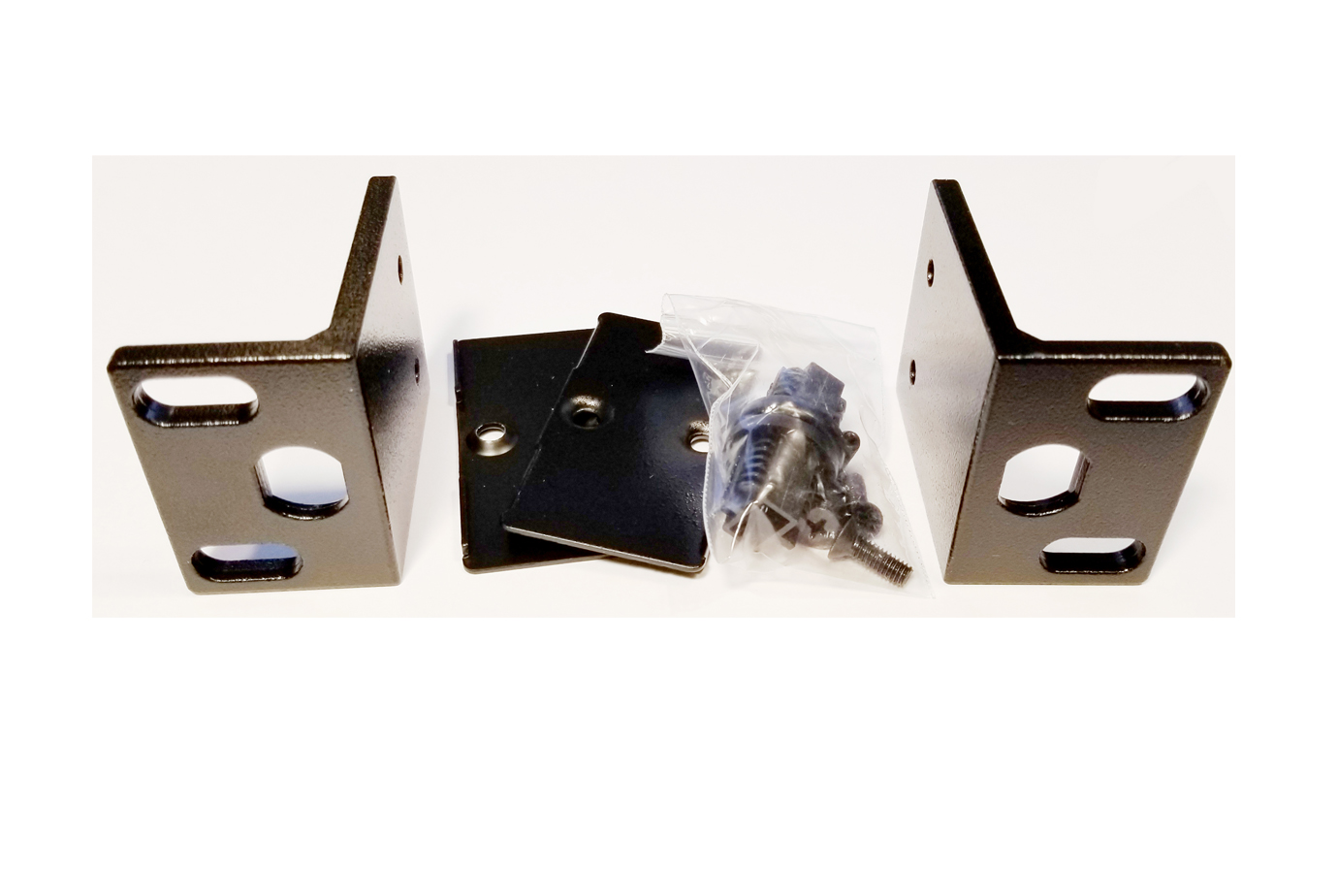

Mipro FB-72 Mount 2 MI-58's side by side in one rack space. $22 Delivered

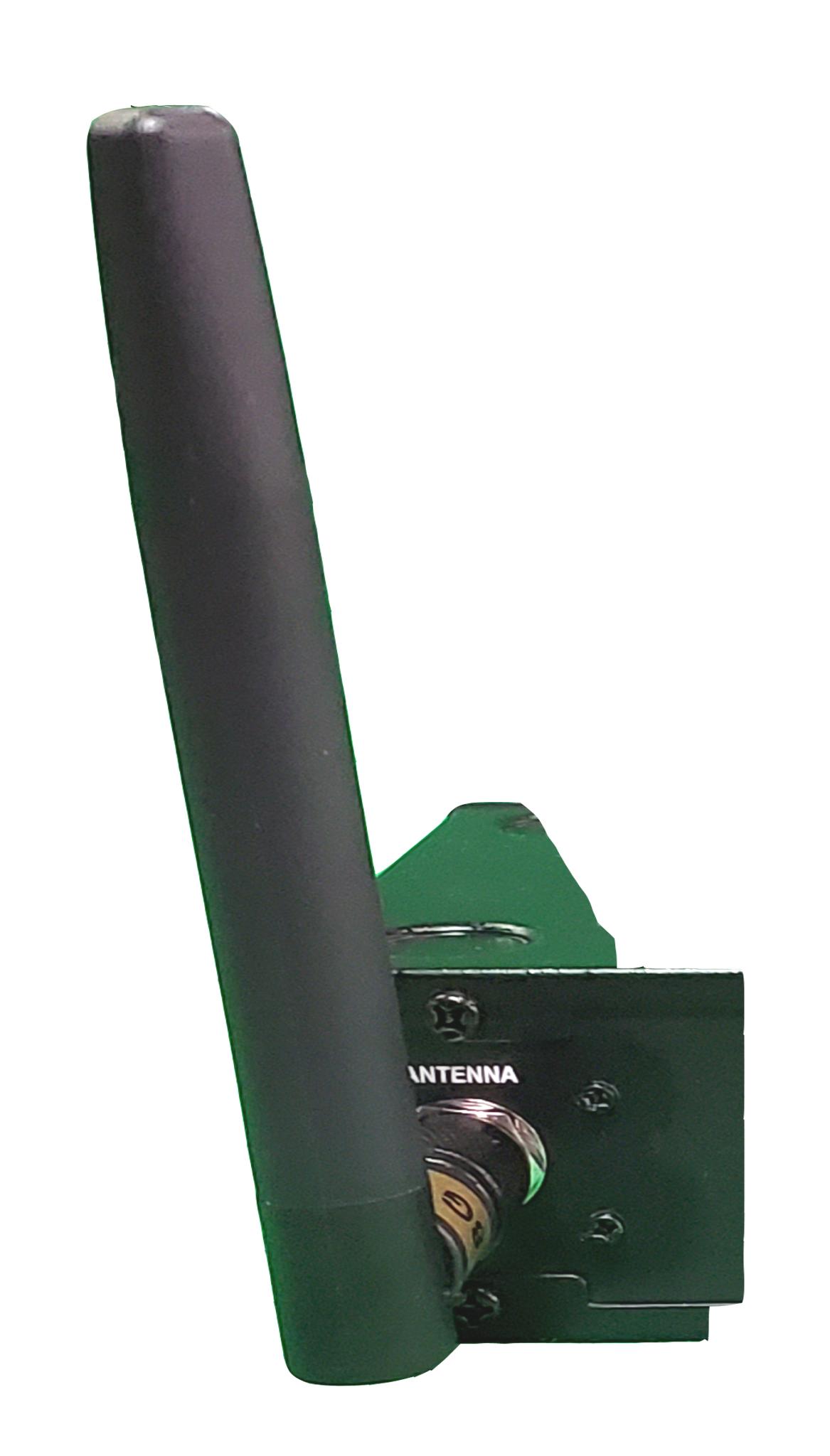

Mipro 2TB016 Detachable
5.8 GHz Antenna $45

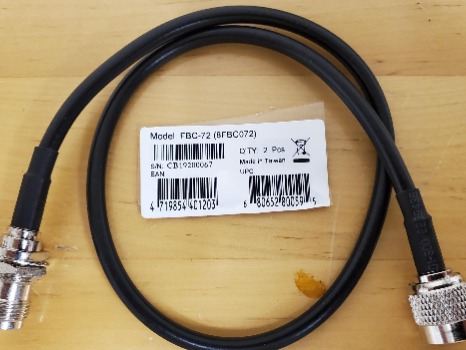

Mipro FBC-72 MI58 Ant. Cable
Mipro MP8 Charger for MI58R

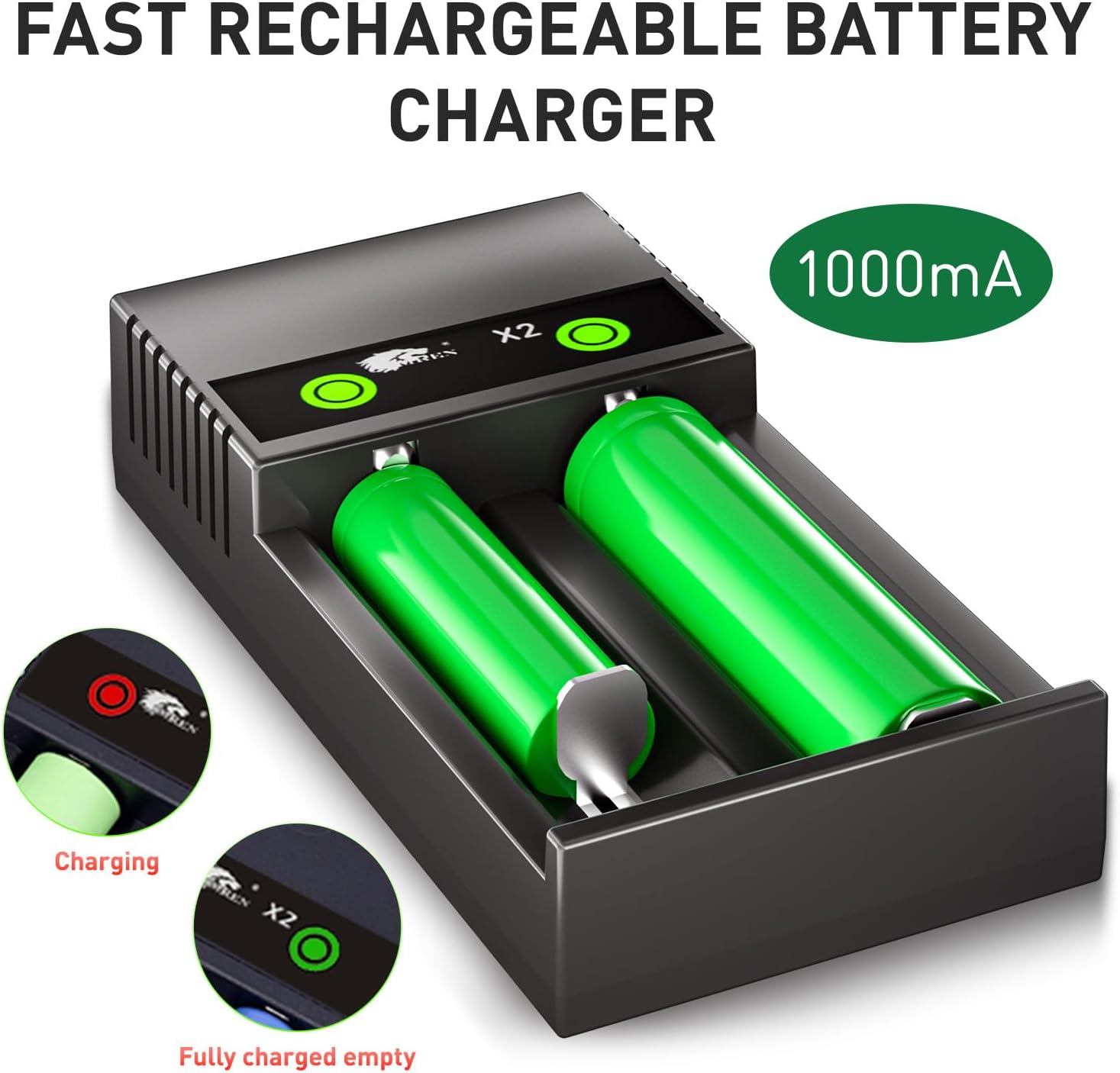

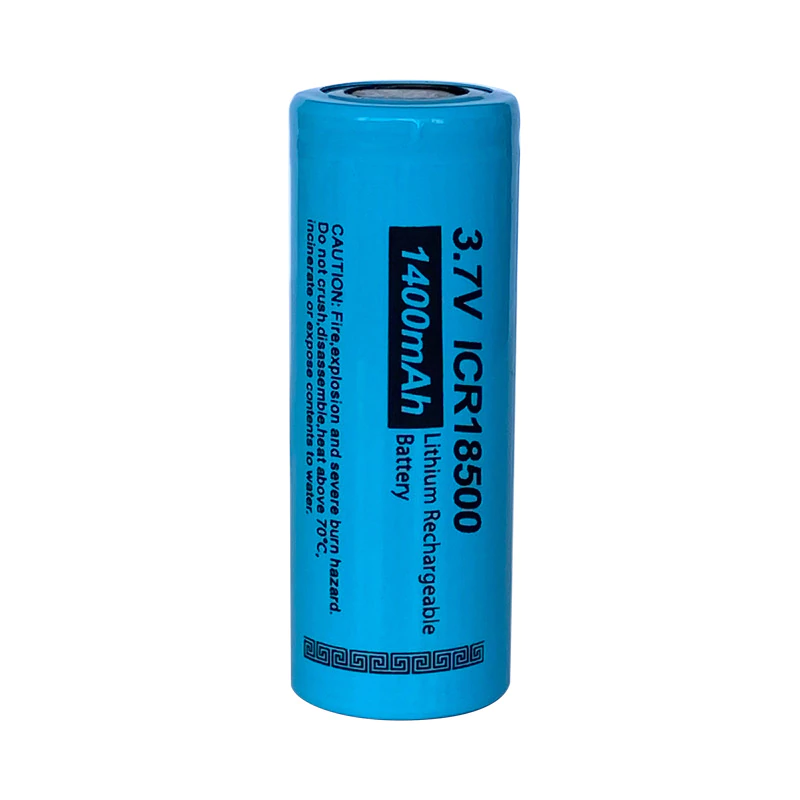

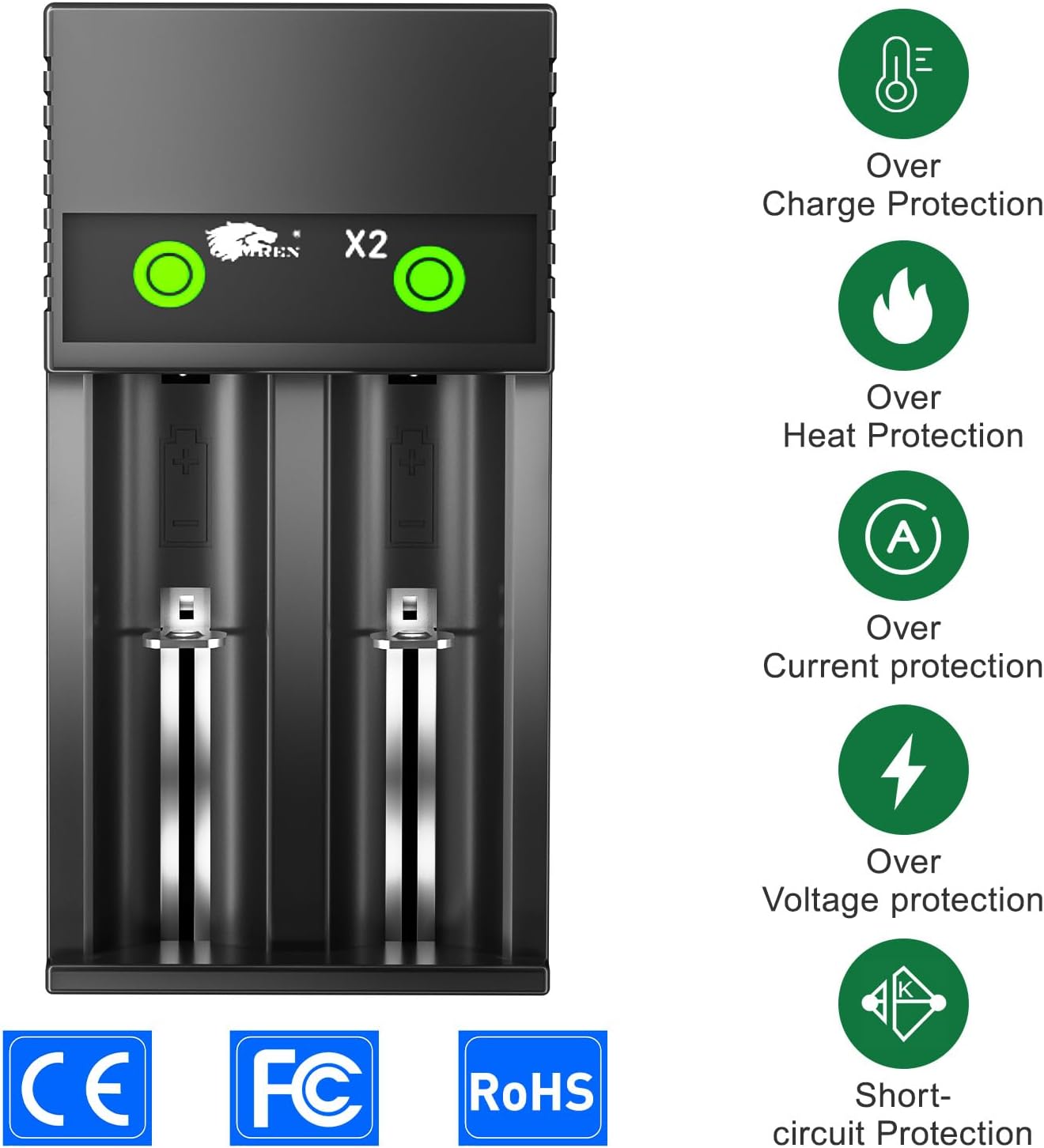

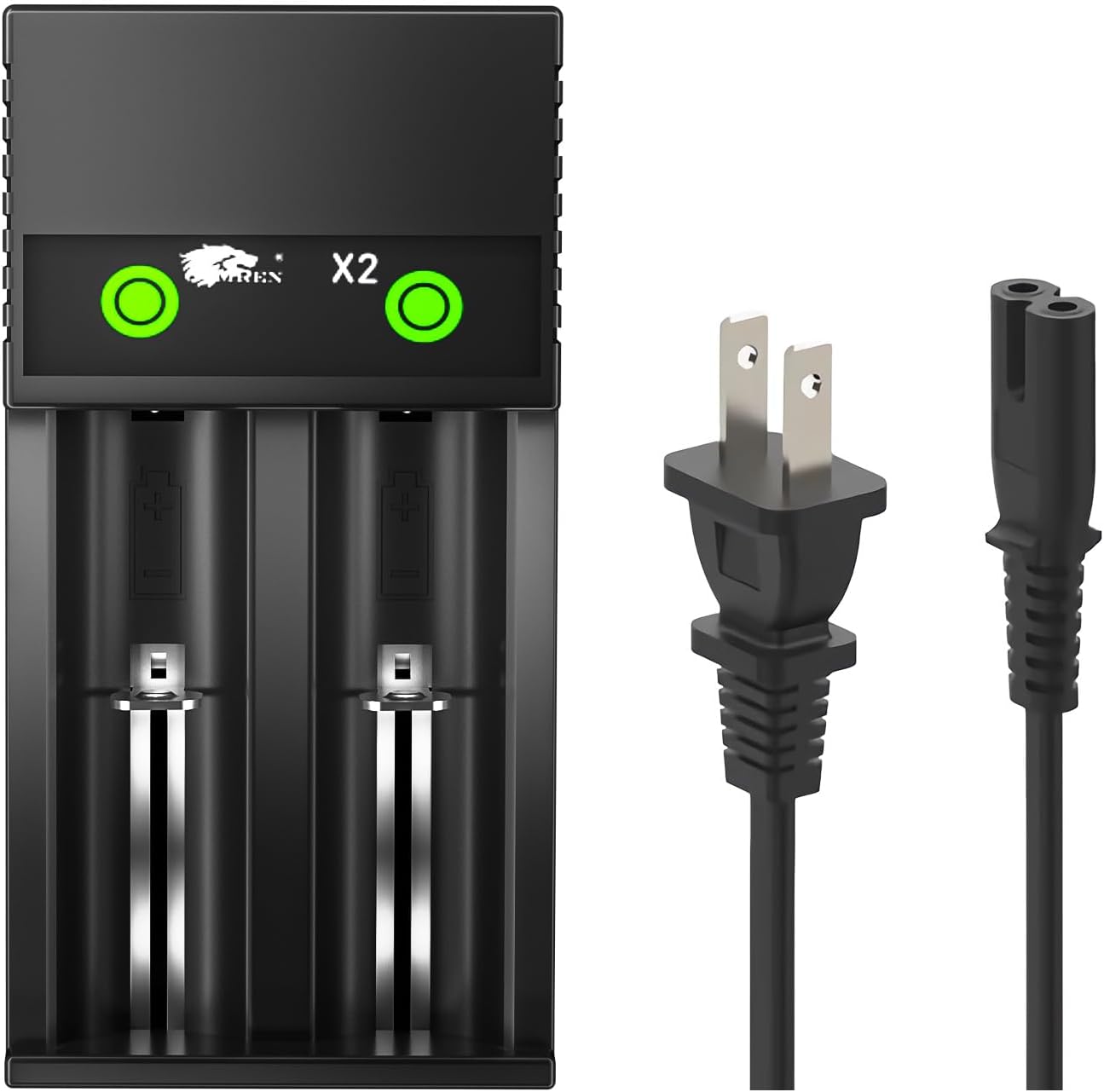

Aftermarket Rechargeable Batteries for the MI58R

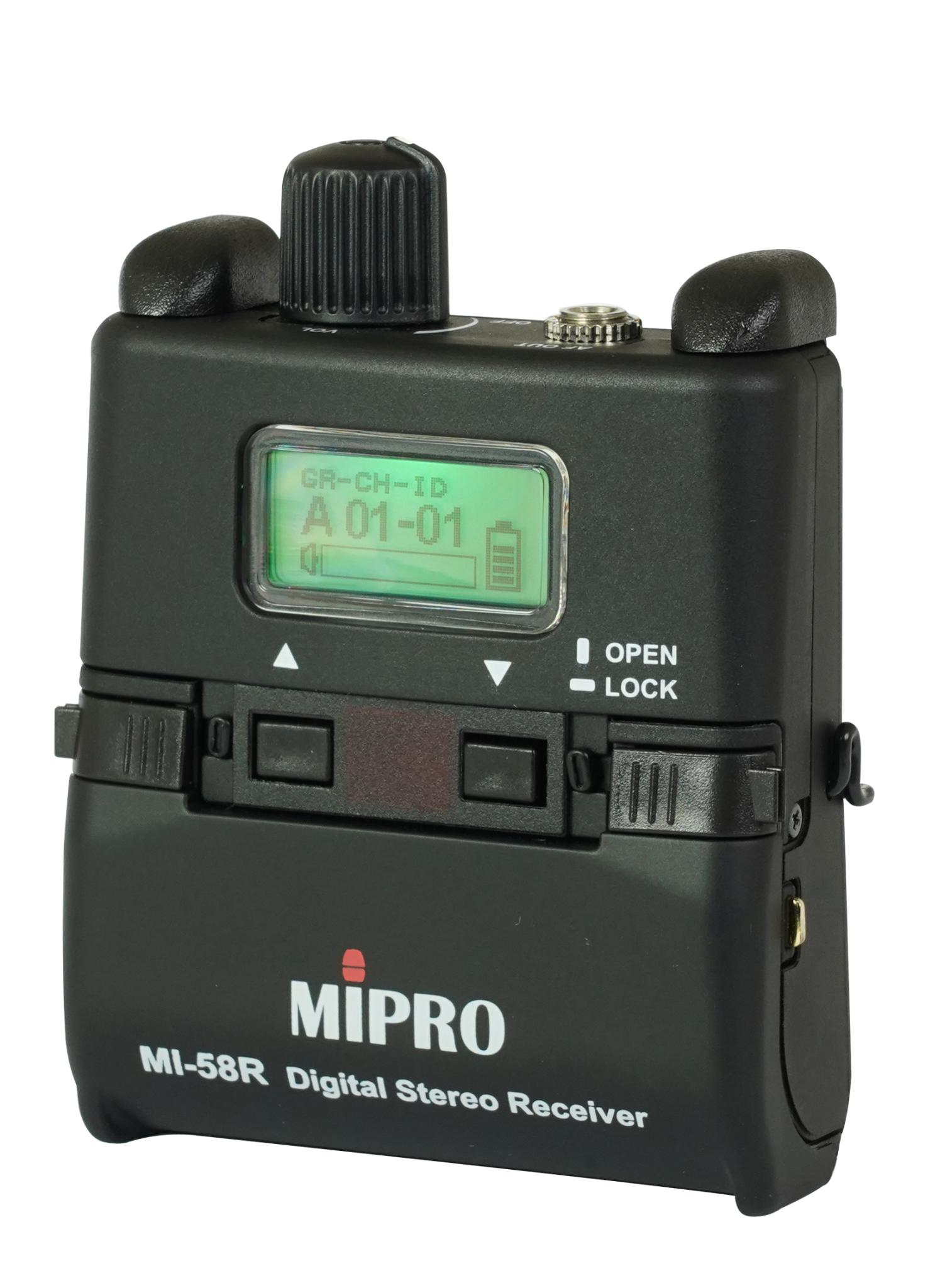

MI-58R Digital Stereo Bodypack Receiver
The MI-58 Series is a digital IEM system operating in ISM 5.8 GHz band, due to the wider bandwidth property, the frequency response range is expanded to 20 Hz~23 kHz, and the S/N ratio is greatly improved, the audio latency is reduced, the sound quality is superior to the UHF system, and affordable price. It provides the DANTE interface for options.
The MI-58 Series consists of the MI-58R stereo bodypack receiver, the MI-58T stereo transmitter. Featuring a user-friendly control panel, long-distance transmission, it is ideal for personal and professional stages monitoring.
The MI-58R has Stereo / Mono / Mixed output modes and EQ settings can suit the users’ preferences and a Ø 3.5 mm TRS jack provides left/right 100mW @16 Ω output for earphones.

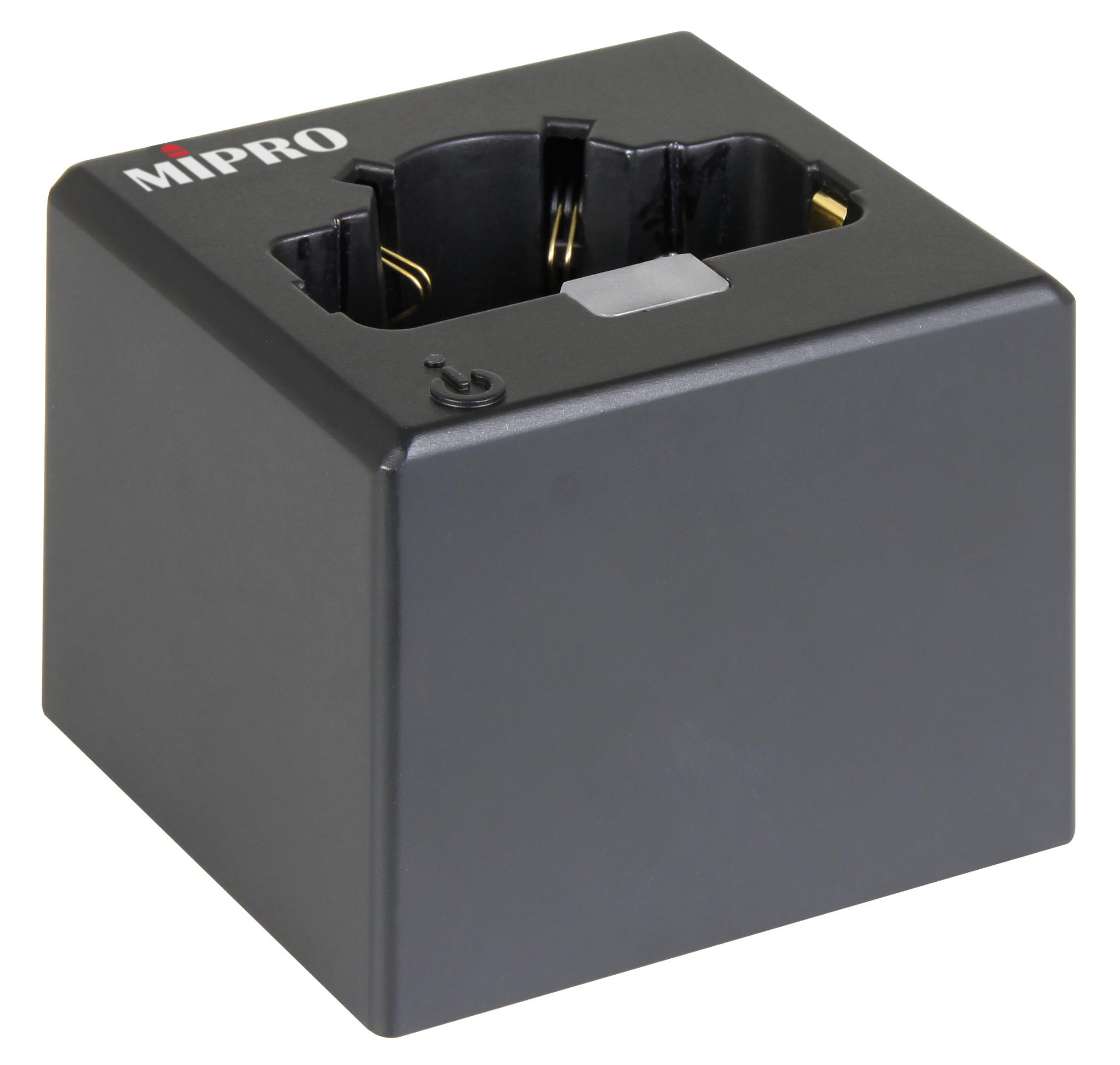

MP-8 One-slot charging station
· Housing Industry’s smallest, lightweight glass-fiber reinforced plastic case.
· Display Backlit LCD with superior features and advanced function settings.
· Frequency Range ISM 5.8 GHz band (5,725~5,850 MHz)
· Modulation Type Digital Modulation
· Channel Setting ACT sync
· Frequency Response 20 Hz ~ 23 kHz (stereo)
· Stereo Separation > 100 dB
· Max. S/N Ratio > 105 dBA (stereo)
· T.H.D 0.03% (min) at 1 kHz
· Latency 2.1 ms (min)
· Sensitivity 5 µV input level, S/N > 100 dB (stereo).
· Earphone Jack Ø 3.5 mm stereo phone jack, Left / Right × 100 mW @ 16 Ω.

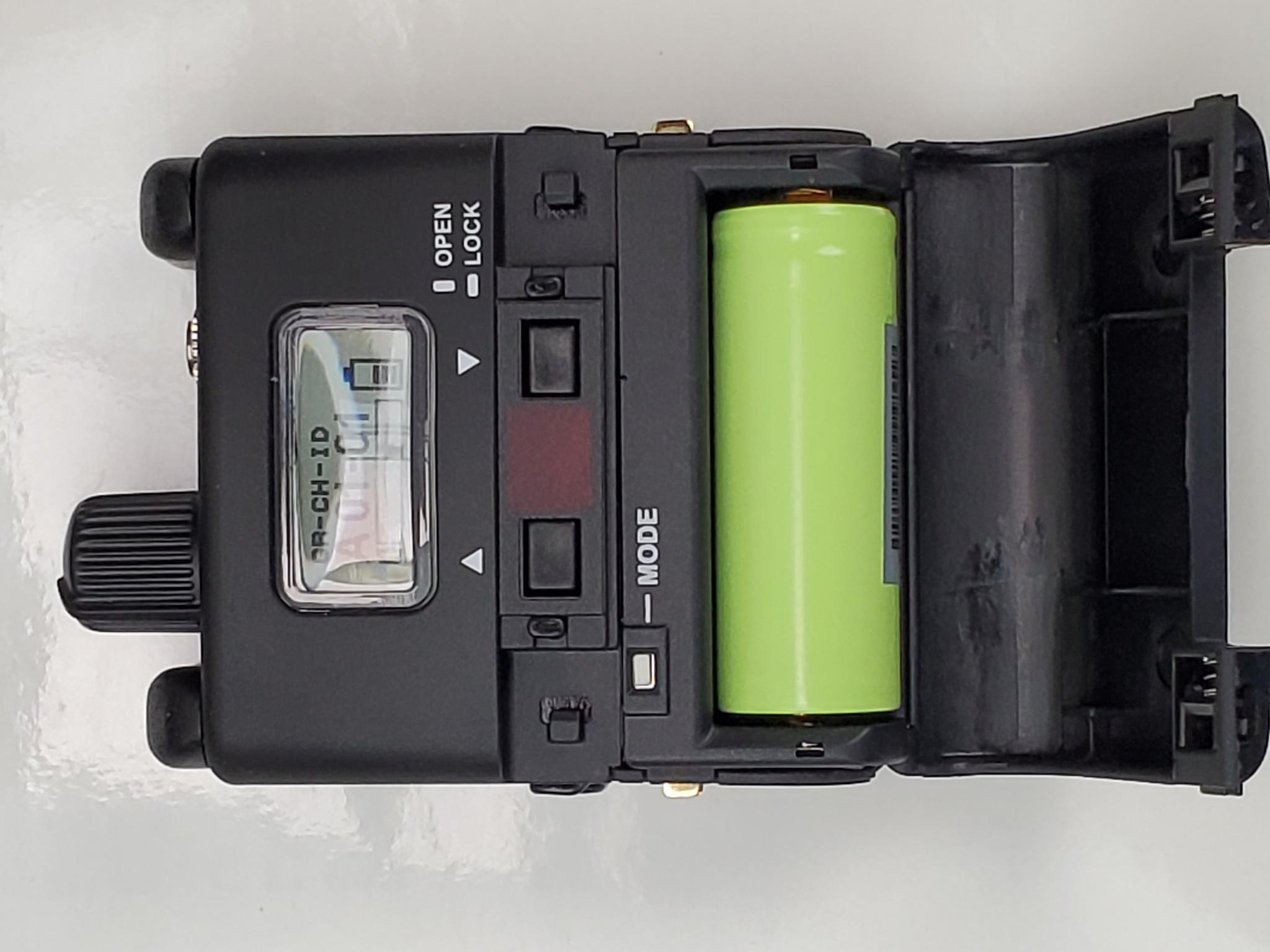

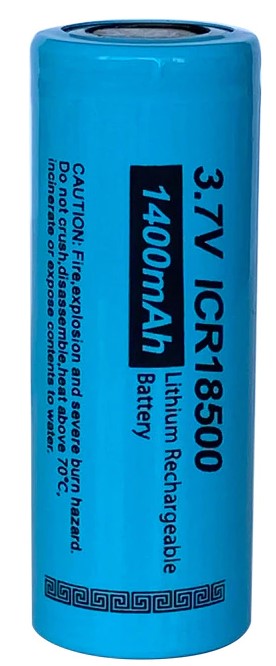

· Power Supply ICR18500 × 1 Li-ion rechargeable battery. Current drain 165 mA.
USER GUIDE PDF: https://www.mipro.com.tw/proimages/user_guide/MI-58R_guide_2021_en.pdf

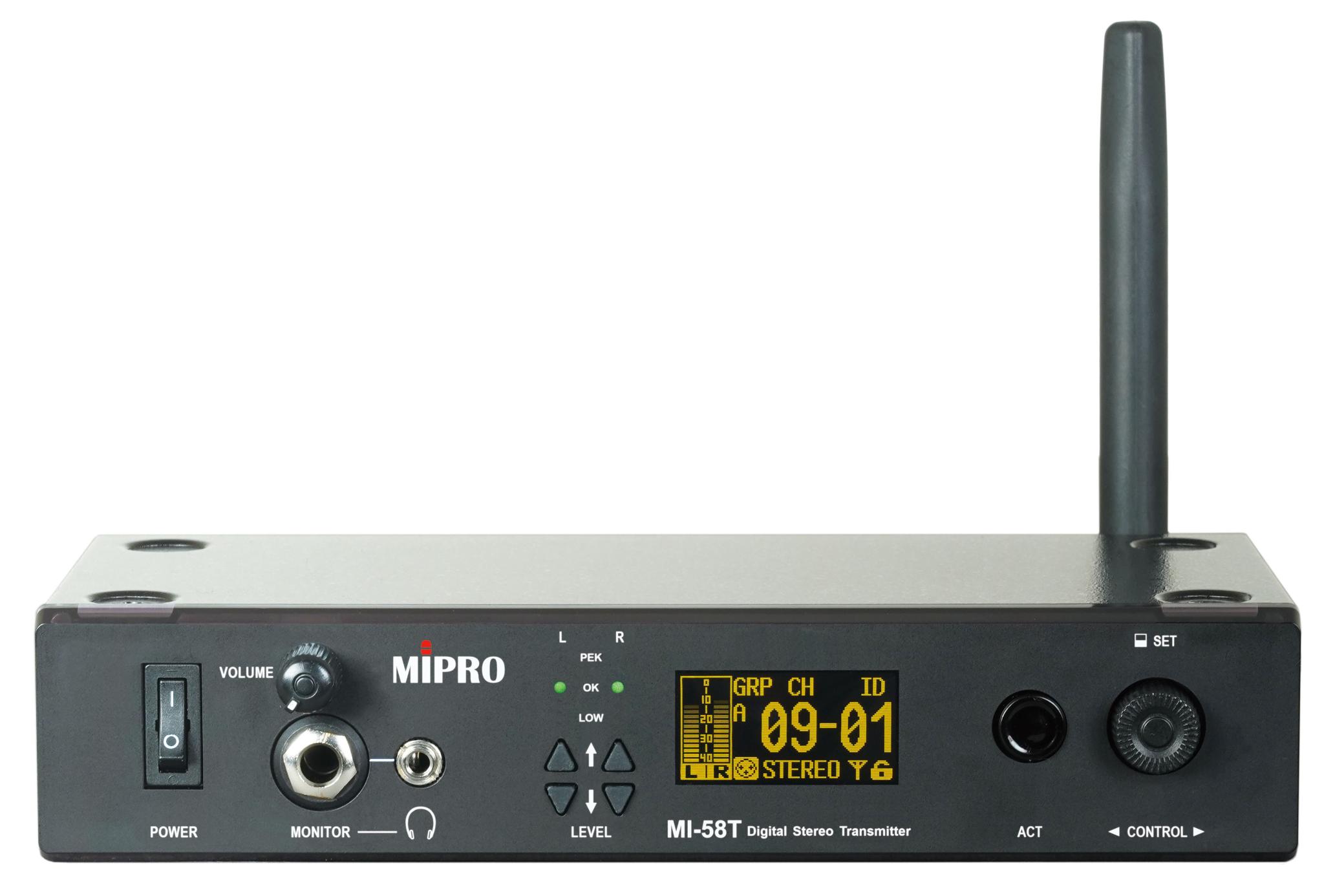

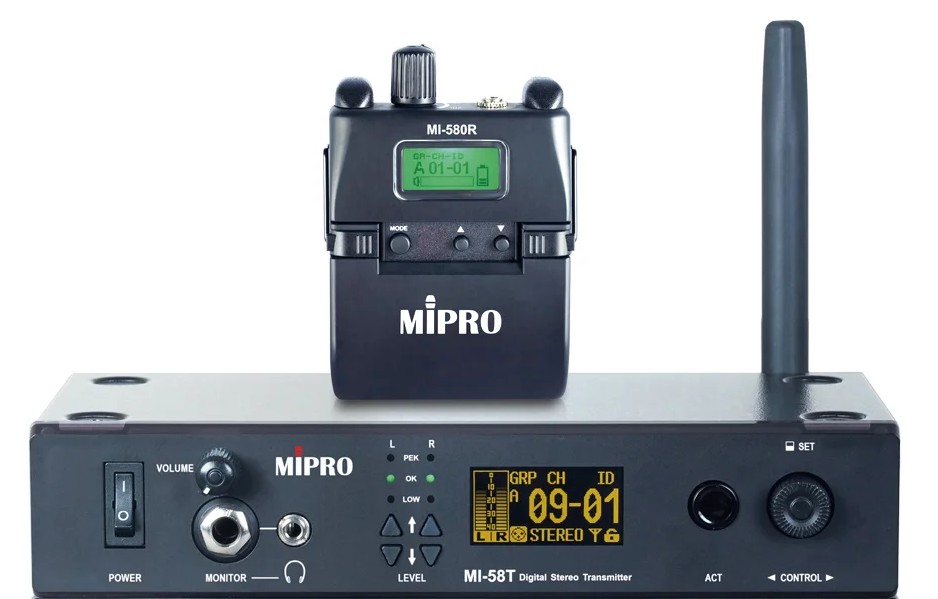

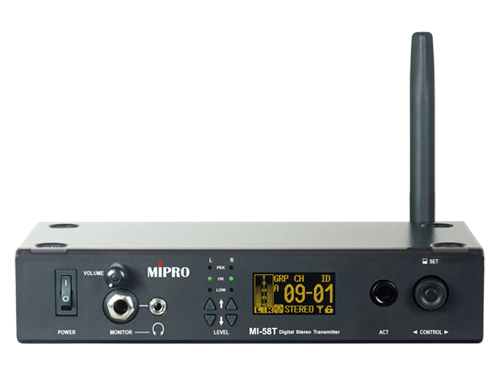

MI-58T Digital Stereo Transmitter

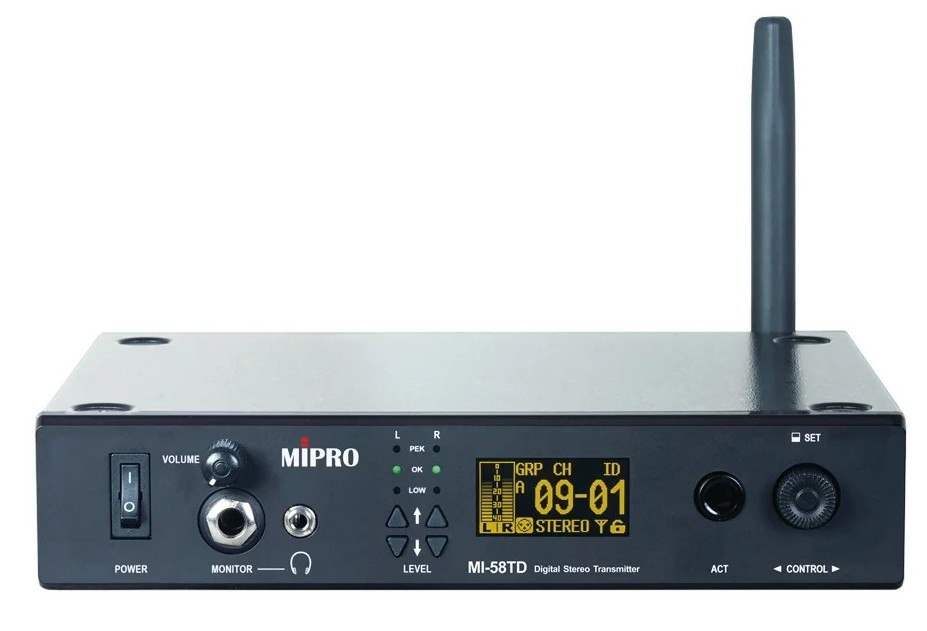

The MI-58T is equipped with an OLED graphical screen, a rotary knob, an ACT sync button, an audio input set button, and the industry’s first SLC for clear identification of the input volume to prevent loudest peaks. It has Ø 3.5 mm and Ø 6.3 mm dual earphone monitoring connectors and gain adjustors.
The rear panel of MI-58T is equipped with an XLR and Ø 6.3 mm input combo jack and two Ø 6.3 mm phone jack loop output. ACT-BUS networking interface and optional Dante interface (Full Dante System $599 / non-Dante $499). TNC RF output connectors. 12V DC power supply.
The MI-58T delivers <10mW output power with an ON / OFF switch, presets several interference-free channels and can ACT sync to the receiver. With a high dynamic range stereo input combo jack, it can sustain the maximum output from any mixer.
· Housing Standard 1/2U rackmount metal case with a rotary control knob.
· Display OLED with advanced function settings.
· Frequency Range ISM 5.8 GHz band (5,725~5,850 MHz)
· Preset Channels Group A & B. Presets 12 channels of interference-free operation
Group A and 24 channels of interference-free operation in Group B1 & B2. 64 ID codes and 1 specific ID can be set for each channel to prevent the same channel interfered
in the the same field.
· Channel Setting ACT sync
· Audio Sampling 24-bit / 48 kHz Rate
· RF Output Power < 10 mW
· Audio Input Jack XLR × 2 and Ø 6.3 mm Combo Jack
· AF Loop Output Jack Ø 6.3 mm × 2 TRS Output Jack
· Earphone Jack Ø 6.3 mm × 1 and 1 × Ø 3.5 mm
· Networking Interface RJ-11 × 2 ACT-BUS，RJ-45 × 1 DANTE interface (optional).
· Power Supply External 10 ~ 15 V DC
USER GUIDE PDF: https://www.mipro.com.tw/proimages/user_guide/MI-58T_MI-58TD_guide_2021_en.pdf
